Dell Alienware m15 R4 User Manual

Steps
1. Open the latch and disconnect the keyboard-backlight cable from the keyboard-controller board.
2. Open the latch and disconnect the keyboard-controller board cable from the keyboard-controller board.
3. Open the latch and disconnect the keyboard cable from the keyboard-controller board.
4. Remove the two screws (M2x1.9) that secure the keyboard-controller board to the palm-rest assembly.
5. Pull on the securing tab to release the keyboard-controls board from the palm-rest assembly.
6. Using the plastic tab, pry and remove the keyboard-controller board from the palm-rest assembly.
Installing the keyboard-controller board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

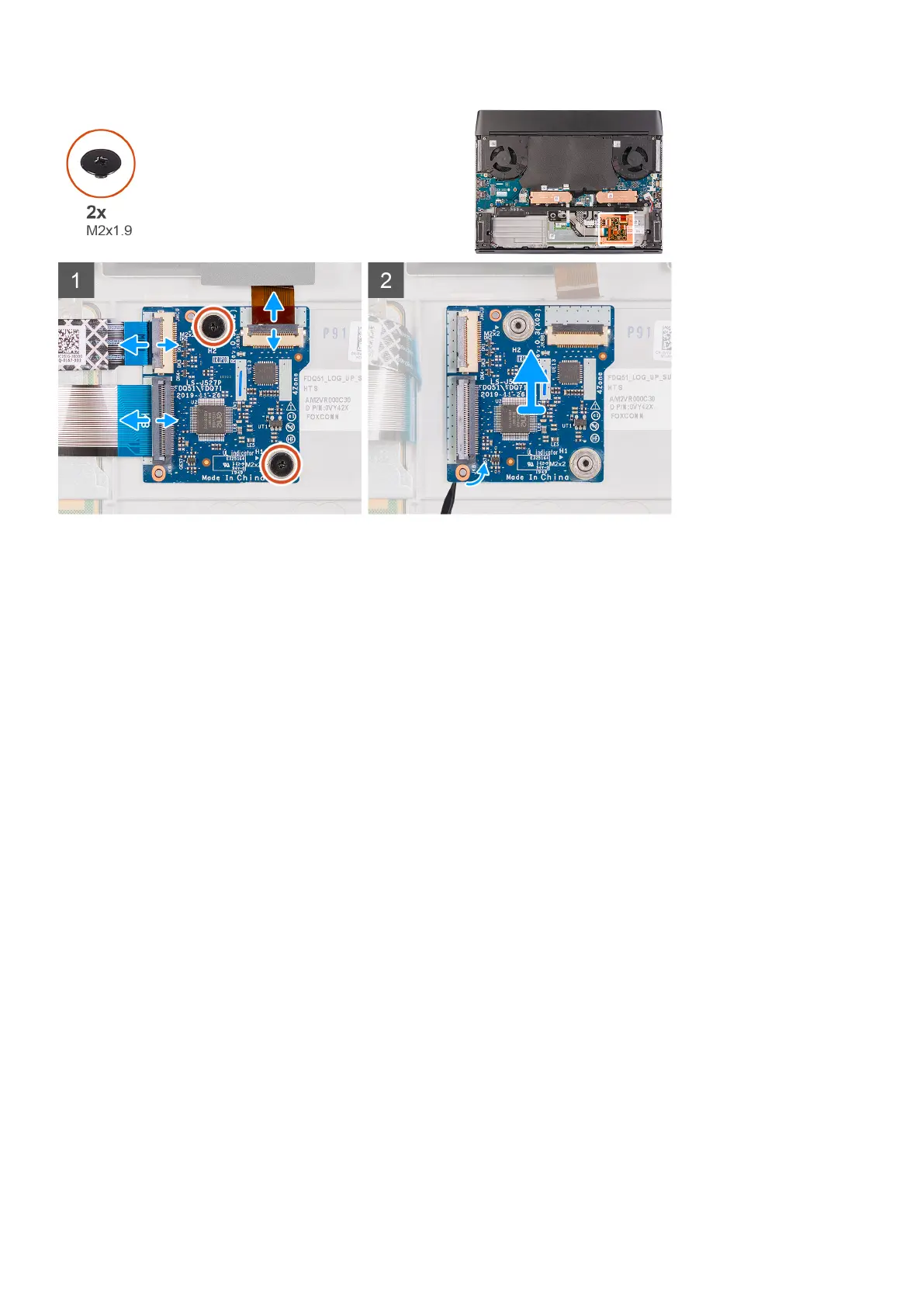

The following image(s) indicate the location of the keyboard-controller board and provides a visual representation of the installation
procedure.
42

Dell Alienware m15 R4 Specifications

General

RAM	Up to 32GB DDR4
Weight	Starting at 4.65 lbs (2.11 kg)
Graphics	NVIDIA GeForce RTX 3060, 3070, or 3080
Display	15.6-inch FHD (1920 x 1080) or 4K OLED
Operating System	Windows 10 Home or Pro
Battery	86WHr
Ports	HDMI 2.1, RJ-45
Wireless	Killer Wi-Fi 6 AX1650 (2x2) and Bluetooth 5.1
Processor	Up to 10th Gen Intel Core i9
