About this task

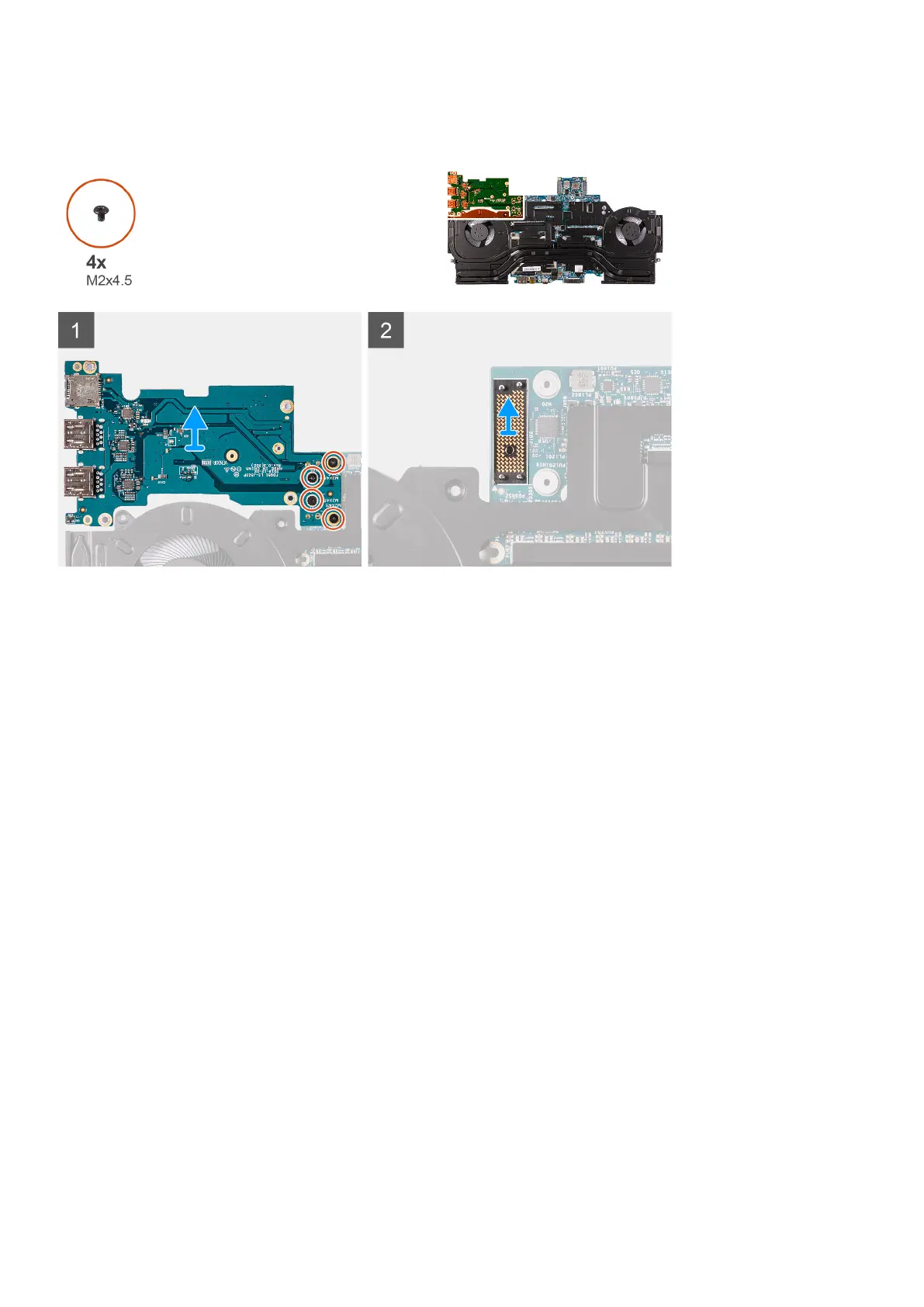

The following image(s) indicate the location of the left I/O-board and provides a visual representation of the removal procedure.
Steps
1. Flip the system-board assembly over.
2. Remove the four screws (M2x4.5) that secure the left-I/O board
3. Lift the left I/O-board from the system-board assembly.
4. Lift the left I/O-board connector board from the system-board assembly.
Installing the left I/O-board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the left I/O-board and provides a visual representation of the installation procedure.
