Steps

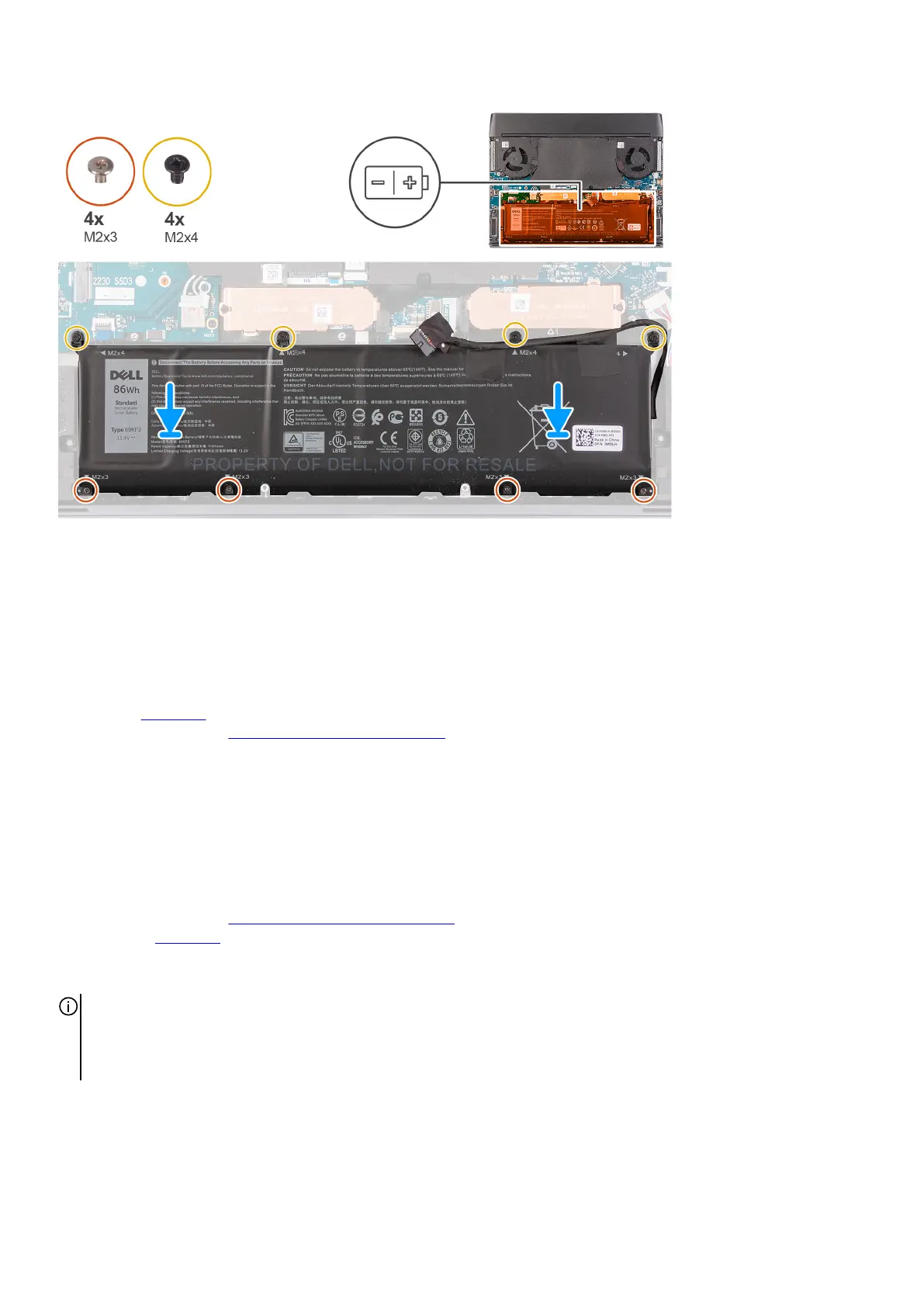

1. Place the battery on the palm-rest assembly.
2. Align the screw holes on the batery to the screw holes on the palm-rest assembly.
3. Replace the four screws (M2x4) that secure the battery to the palm-rest assembly.
4. Replace the four screws (M2x3) that secure the battery to the palm-rest assembly.
Next steps
1. Install the
base cover.
2. Follow the procedure in After working inside your computer.
M.2 solid-state drive
Removing the M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: This procedure applies only to computers shipped with a M.2 2230 solid-state drive installed in the following M.2 card
slots:
M.2 card slot 1
M.2 card slot 2
The following image(s) indicate the location of the M.2 2230 solid-state drive and provides a visual representation of the removal
procedure.
M.2 2230 solid-state drive in M.2 card slot 1
19
