Steps

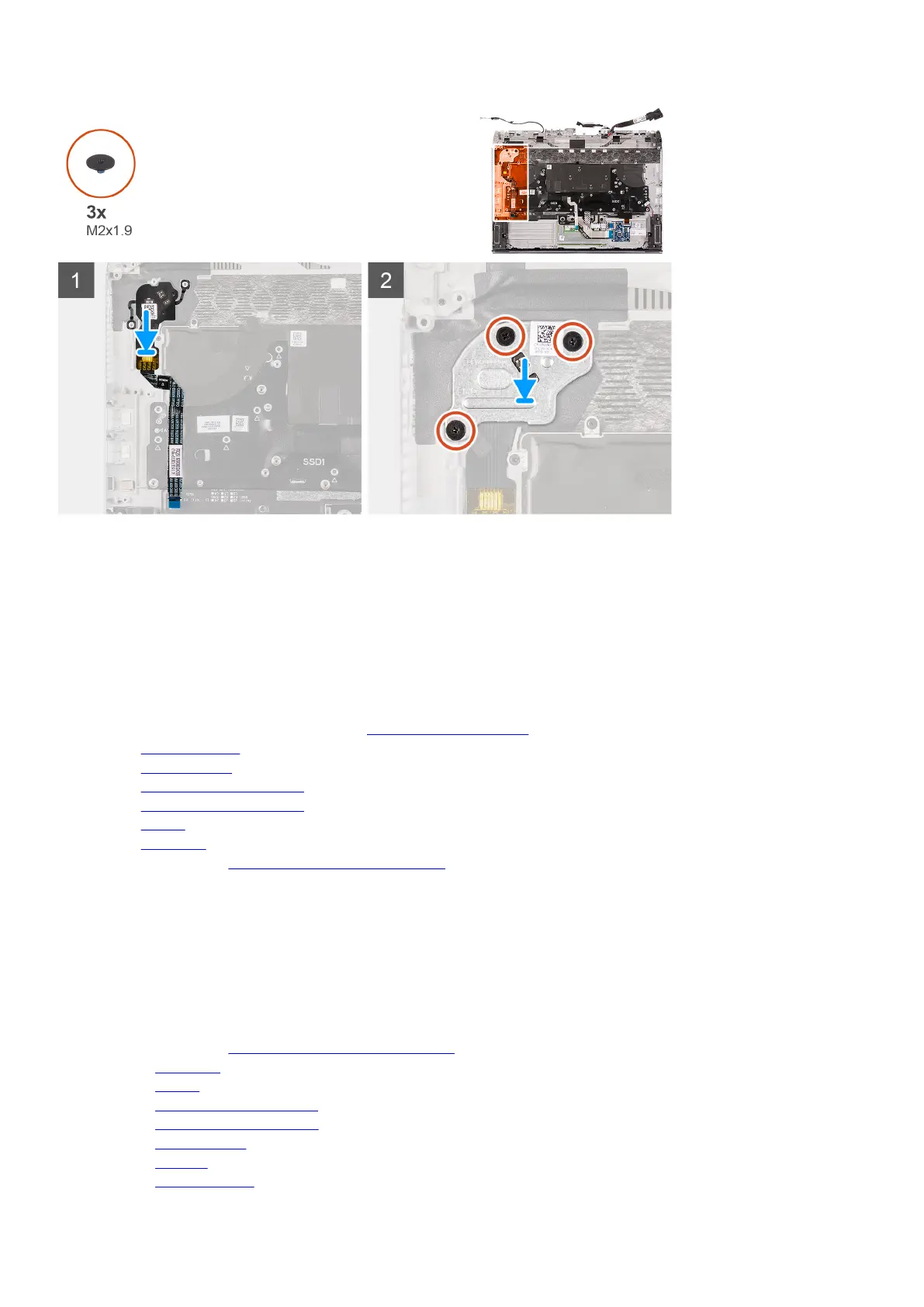

1. Place the power-button assembly and its cable in the slot on the palm-rest assembly.
2. Place the power-button bracket on the power-button assembly.
3. Align the screw holes on the power-button bracket to the screw holes on the palm-rest assembly.
4. Replace the three (M2x1.9) screws that secure the power-button bracket to the palm-rest assembly.
5. Adhere the power-button assembly cable on the palm-rest assembly.
Next steps
1. Follow the procedure from step 3 to step 24 in
Installing the system board.
2. Install the
right I/O-board.
3. Install the rear I/O-cover.
4. Install the M.2 2230 solid-state drive, if applicable.
5. Install the M.2 2280 solid-state drive, if applicable.
6. Install the
battery.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.
Keyboard
Removing the keyboard
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the M.2 2230 solid-state drive, if applicable.
5. Remove the M.2 2280 solid-state drive, if applicable.
6. Remove the
rear I/O-cover.
7. Remove the speakers.
8. Remove the right I/O-board.
61
