Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #0
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a
component.
NOTE: Screw color may vary with the configuration ordered.

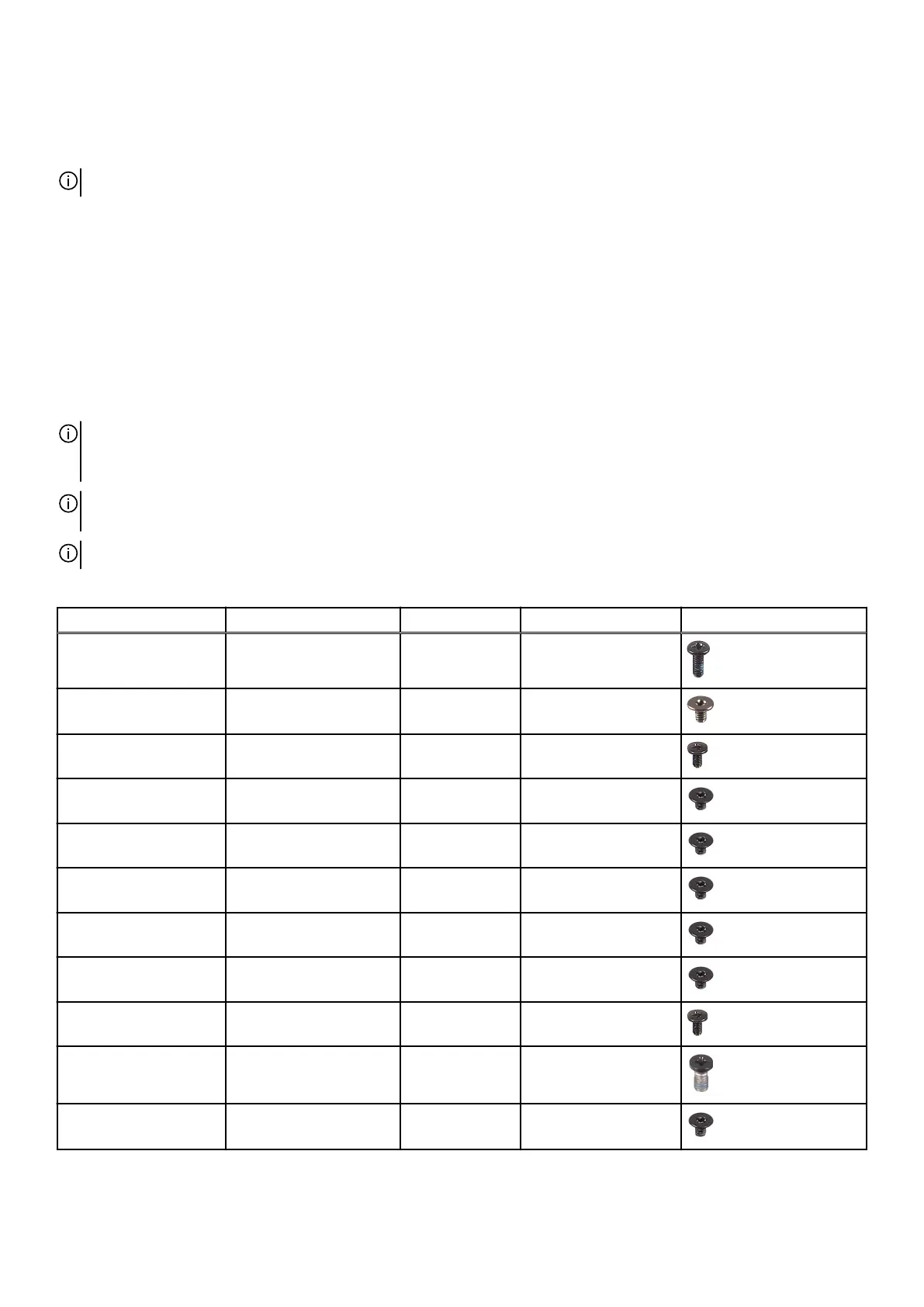

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm-rest assembly M2.5x5 2
Battery Palm-rest assembly M2x3 4
Battery Palm-rest assembly M2x4 4
M.2 2230 solid-state
drive
M.2 2230 mounting
bracket
M2x2.5 1 per M.2 2230 solid-
state drive
M.2 2230 mounting
bracket
Palm-rest assembly M2x2.5 1 per M.2 2230 solid-
state drive
M.2 2280 solid-state
drive
Palm-rest assembly M2x2.5 1 per M.2 2280 solid-
state drive
M.2 2230 WWAN/
solid-state drive
M.2 2230 thermal shield M2x2.5 1
M.2 2230 thermal shield Left I/O-board M2x2.5 1
Rear I/O-cover Palm-rest assembly M2x4 2
Rear I/O-cover Palm-rest assembly M2.5x5 2
Wireless-card bracket Left I/O-board M2x3 1
9
