Palmrest
Removing the palmrest
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the
M.2 2230 solid-state drive, if applicable.
5. Remove the
M.2 2280 solid-state drive, if applicable.
6. Remove the rear I/O-cover.
7. Remove the display assembly.
8. Remove the speakers.
9. Remove the
touchpad.
10.Remove the keyboard-controller board.
11. Remove the right I/O-board.
12. Follow the procedure from step 1 to step 19 in Removing the system board.
13. Remove the power-adapter port.
14. Remove the
power-button assembly.
15.Remove the keyboard.
About this task

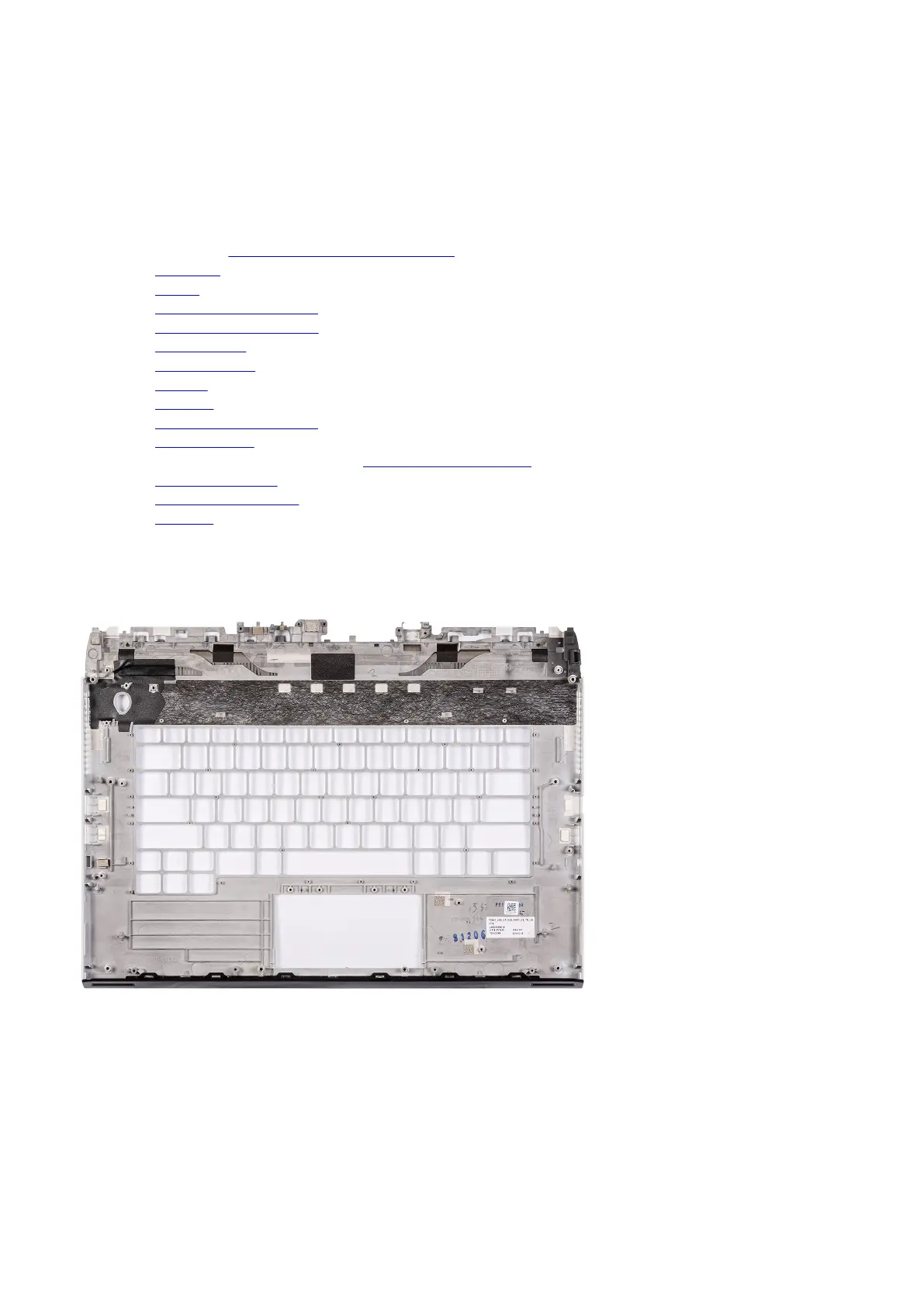

The following image(s) indicate the location of the palmrest and provides a visual representation of the removal procedure.
Steps
After performing the pre-requisites, you are left with the palmrest.
