Dell Alienware m15 R4 - Page 22

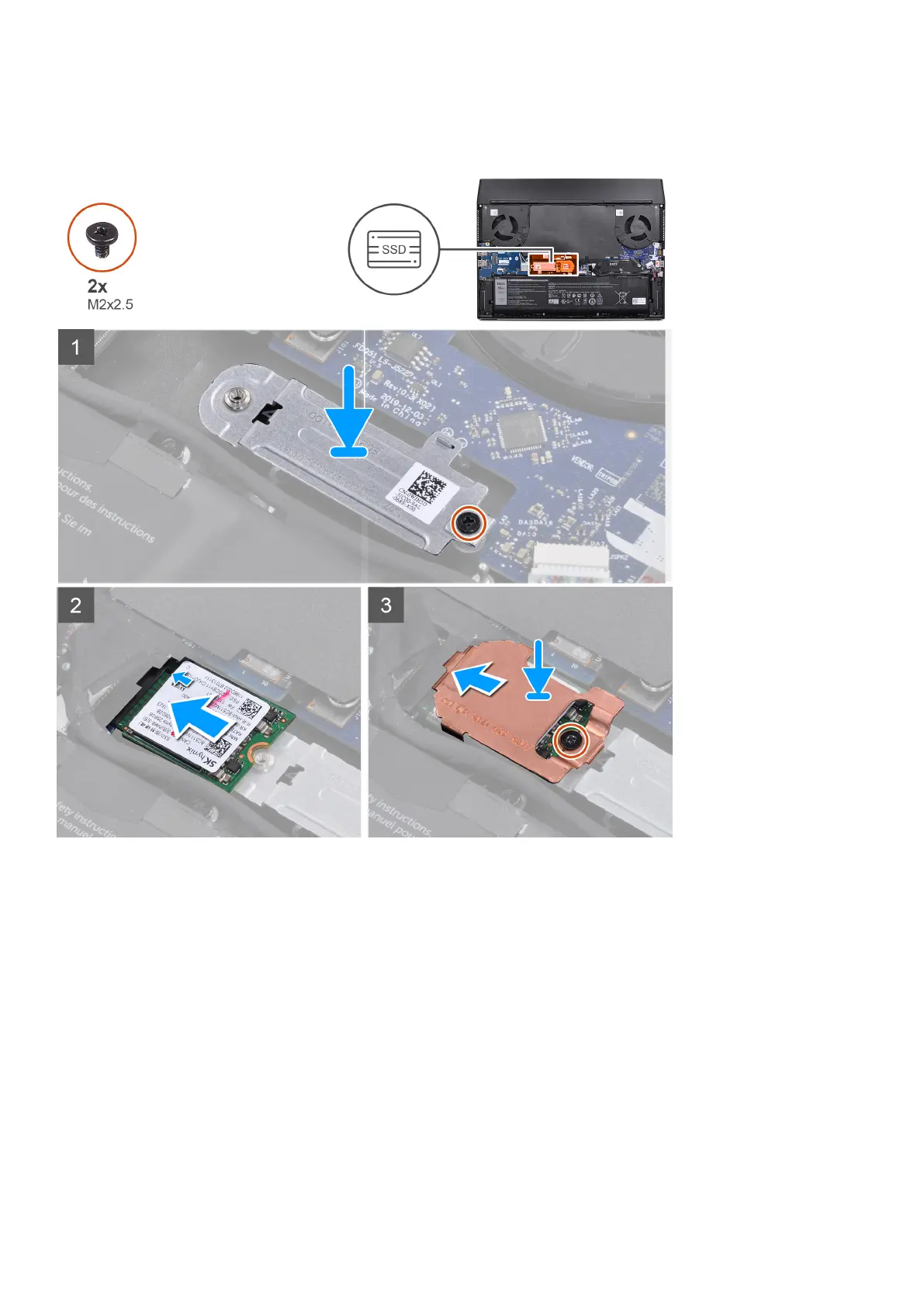

The following image(s) indicate the location of the M.2 2230 solid-state drive and provides a visual representation of the installation
procedure.
M.2 2230 solid-state drive in M.2 card slot 1
M.2 2230 solid-state drive in M.2 card slot 2
22
