About this task

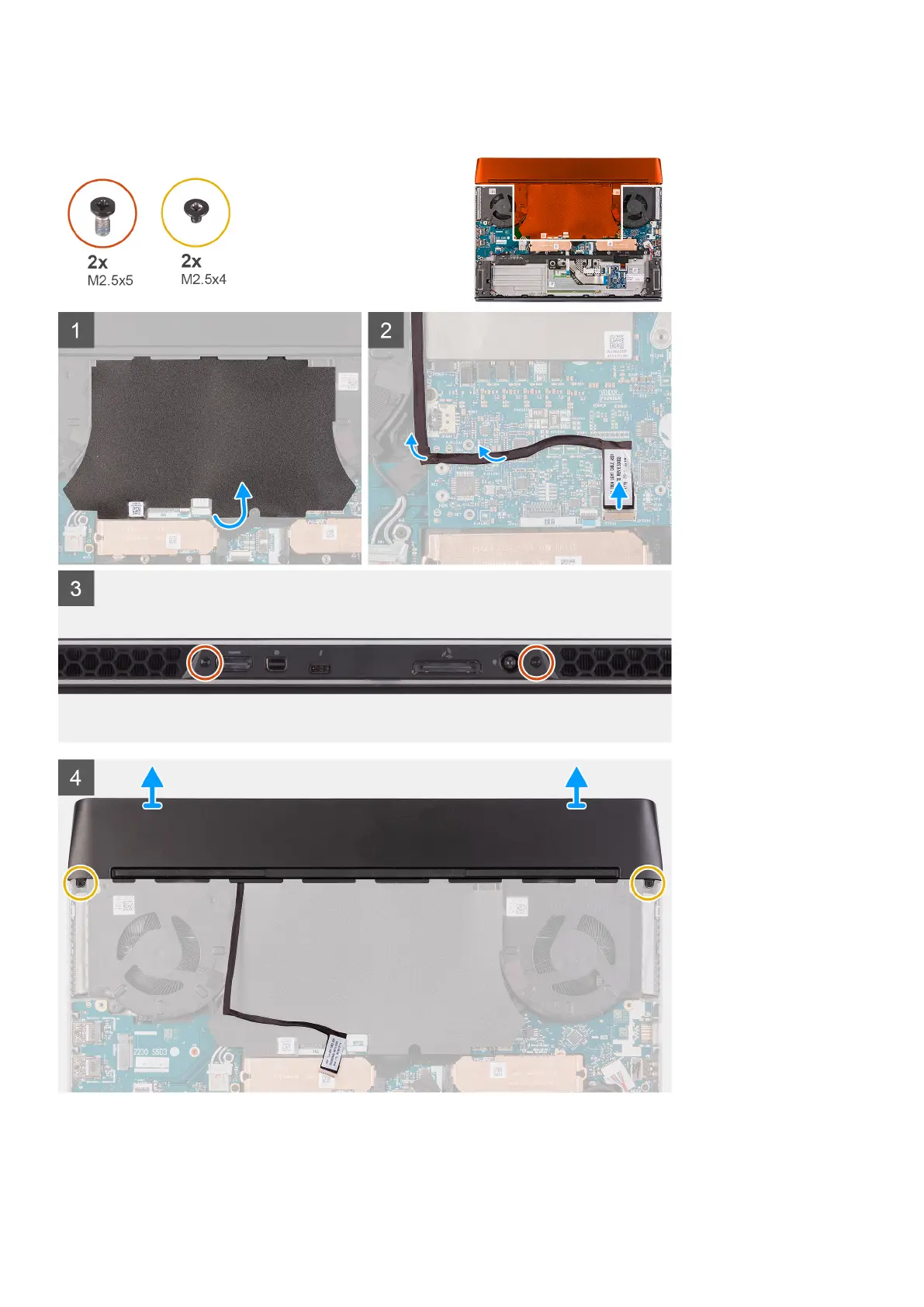

The following image(s) indicate the location of the rear I/O-cover and provides a visual representation of the removal procedure.
Steps
1. Peel and lift the Mylar covering the system board.
2. Disconnect and peel the Tron-light cable from the system board.
