Steps
1. Ensure that the palm-rest assembly is placed face up with the keyboard facing you.
2. Gently place the display assembly on the palm-rest assembly.
NOTE: Ensure that the screw holes on the display hinges are aligned with the screw holes on the palm-rest assembly.
3. Align the screw holes on the display assembly with the screw holes on the palm-rest assembly.
4. Replace the eight screws (M2.5x4) that secure the display assembly to the palm-rest assembly.

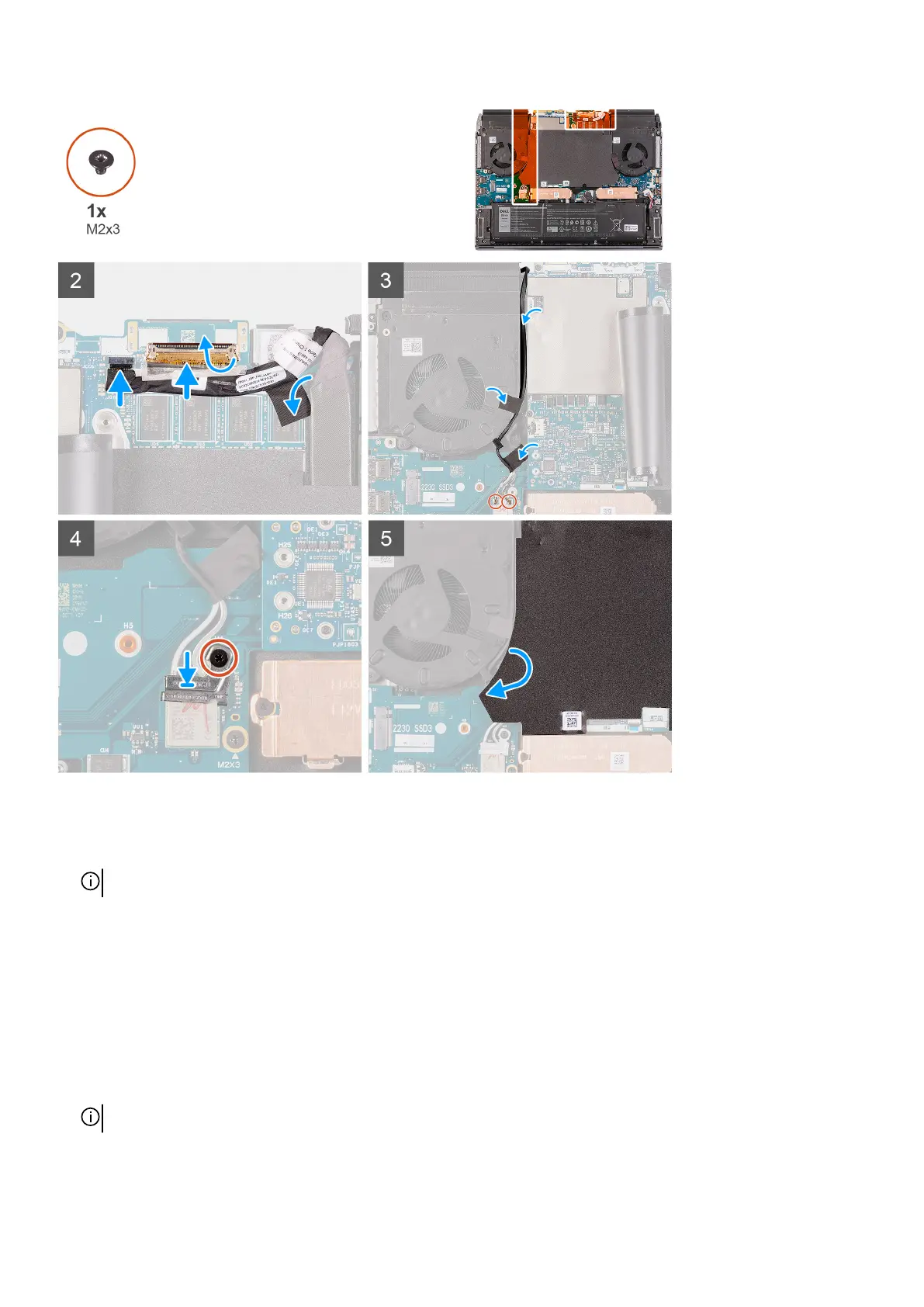

5. Route the following cables to the routing guides on the palm-rest assembly.
● Display cable
● G-sensor cable
● Tobii eye tracker cable (optional)
● Antenna cables
6. Place the computer face down.
7. Connect the Tobii eye tracker cable to the connector on the system board.
NOTE: This step is only applicable to computers shipped with a Tobii eye tracker.
8. Connect the G-sensor cable to the connector on the system board.
36
