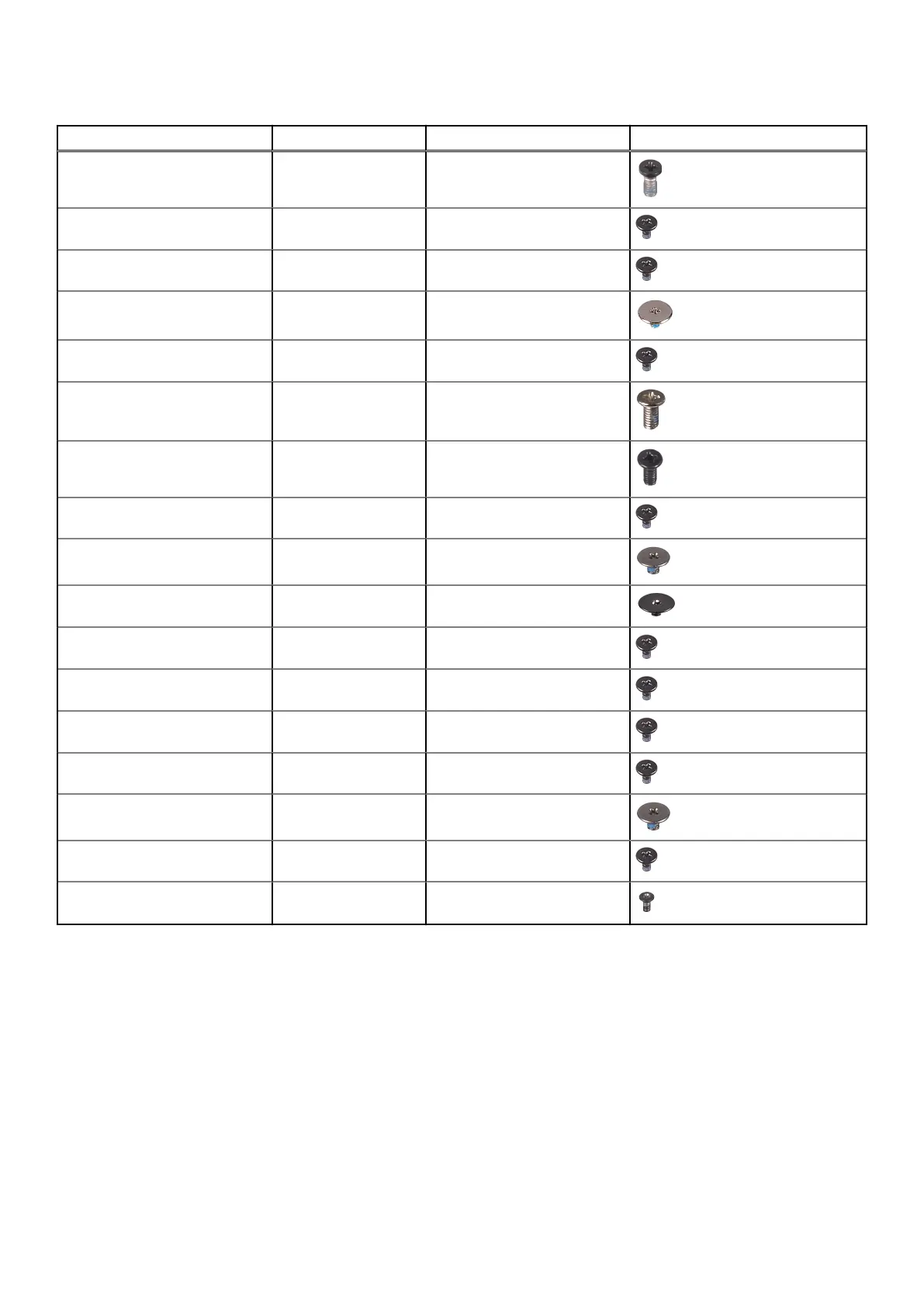

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
Power-adapter port-bracket M2.5x5 2
Left fan M2x3 2
Right fan M2x3 3
Heat pipe M2x3 3
Heat pipe M2x3 3
Heat pipe M2x4 2
Display assembly M2.5x5 6
System board M2x3 5
Touchpad M1.6x2 4
Keyboard-controller board M1.6x1.7 2
Wireless-card bracket M2x3 1
System board M2x3 4
System board M2x4 1
Fan and heat-sink assembly M2x3 8
Power-button bracket M1.6x2 3
I/O board M2x3 4
Keyboard bracket M1.2x2 30
Major components of Alienware x17 R1
The following image shows the major components of Alienware x17 R1.
