Dell Alienware x17 R1 User Manual

Steps

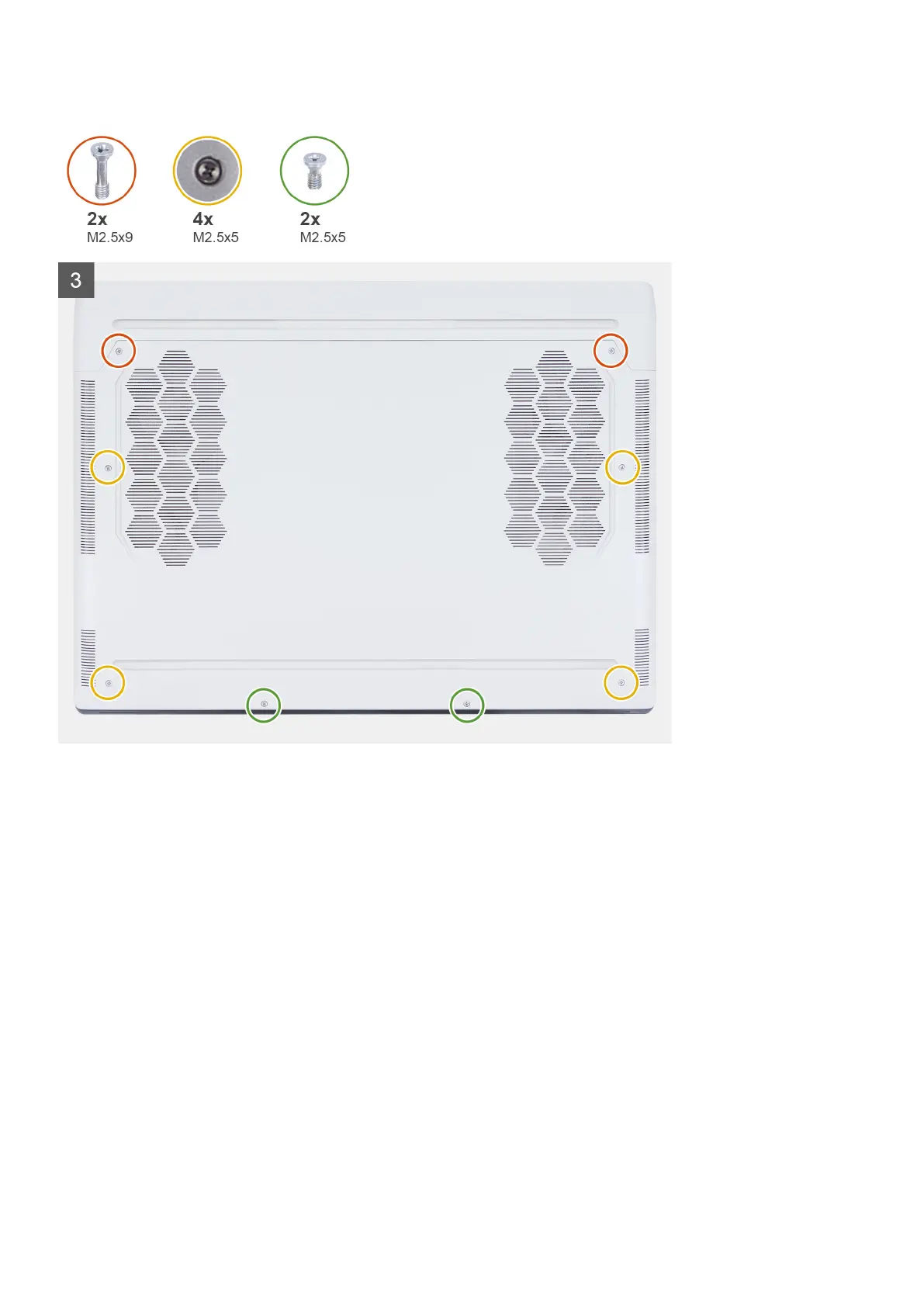

1. Connect the battery cable to the system board.
2. Place and slide the base cover into place on the palm-rest and keyboard assembly.
3. Tighten the four captive screws (M2.5x5) that secure the base cover to the palm-rest and keyboard assembly.
4. Replace the two screws (M2.5x9) that secure the base cover to the palm-rest and keyboard assembly.
5. Replace the two screws (M2.5x5) that secure the base cover to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure in After working inside your computer.
Memory module
Removing the memory
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
Removing and installing components
17
