Steps

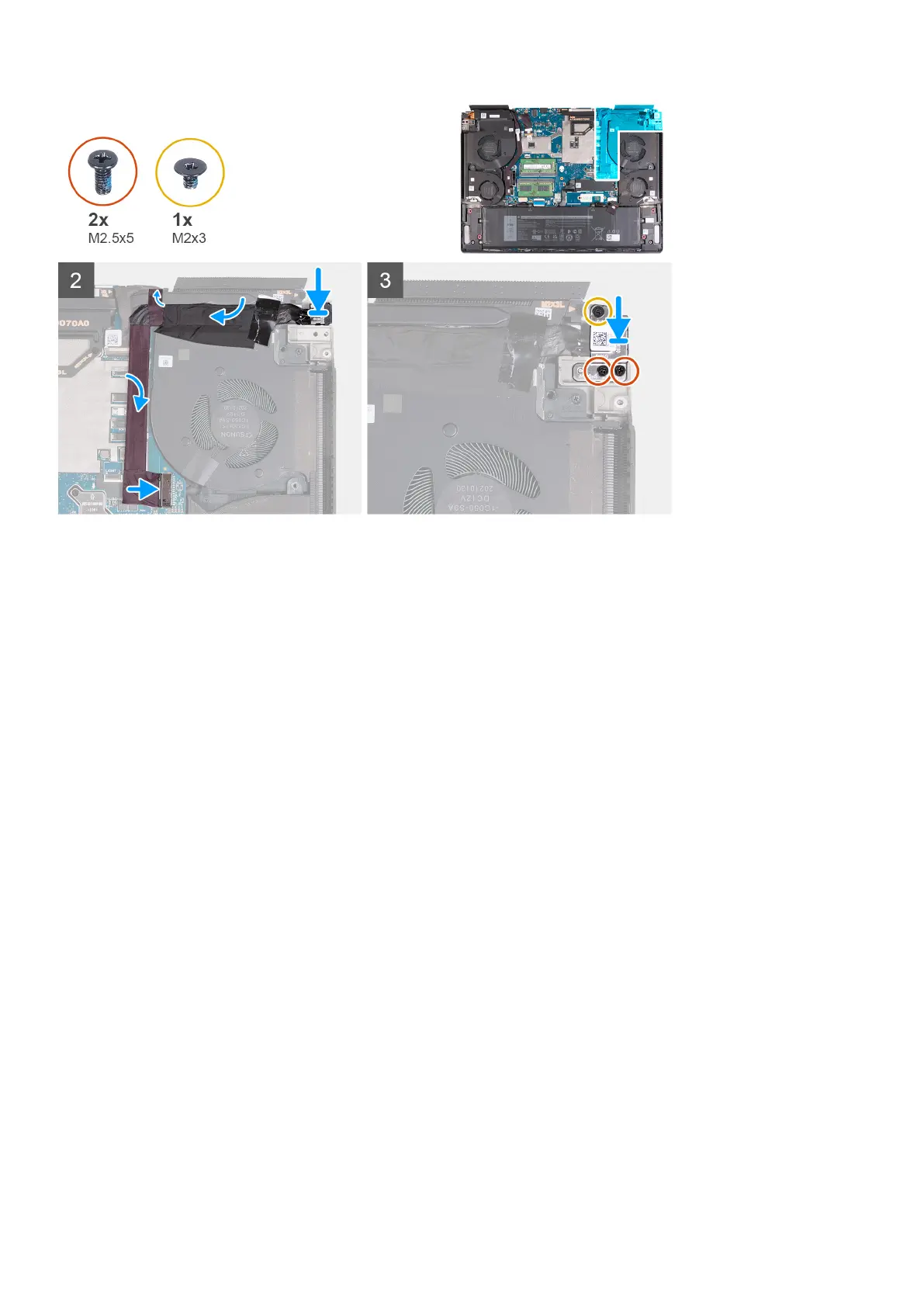

1. Connect the power-adapter port cable to the system board.
2. Slide the power-adapter port at an angle into the slot on the palm-rest and keyboard assembly and adhere the power-
adapter port cable to the system board.
3. Adhere the tapes that secure the power-adapter port cable to the system board.
4. Place the power-adapter port bracket on the palm-rest and keyboard assembly.
5. Align the screw holes on the power-adapter port bracket to the screw holes on the palm-rest and keyboard assembly.
6. Replace the two screws (M2.5x5) that secure the power-adapter port bracket to the palm-rest and keyboard assembly.
7. Replace the screw (M2x3) that secures the power-adapter port bracket to the palm-rest and keyboard assembly.
Next steps
1. Install the rear-I/O cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Headset port
Removing the headset port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear-I/O cover.
About this task
The following image(s) indicate the location of the headset port and provides a visual representation of the removal procedure.
