Steps
1. Remove the two screws (M2.5x9) that secure the base cover to the palm-rest and keyboard assembly.
2. Remove the two screws (M2.5x5) that secure the base cover to the palm-rest and keyboard assembly.
3. Loosen the four captive screws (M2.5x5) that secure the base cover to the palm-rest and keyboard assembly.
4. Slide and lift the base cover off the palm-rest and keyboard assembly.
NOTE: The following steps are needed only if other components are being removed from your computer.
5. Disconnect the battery cable from the system board.

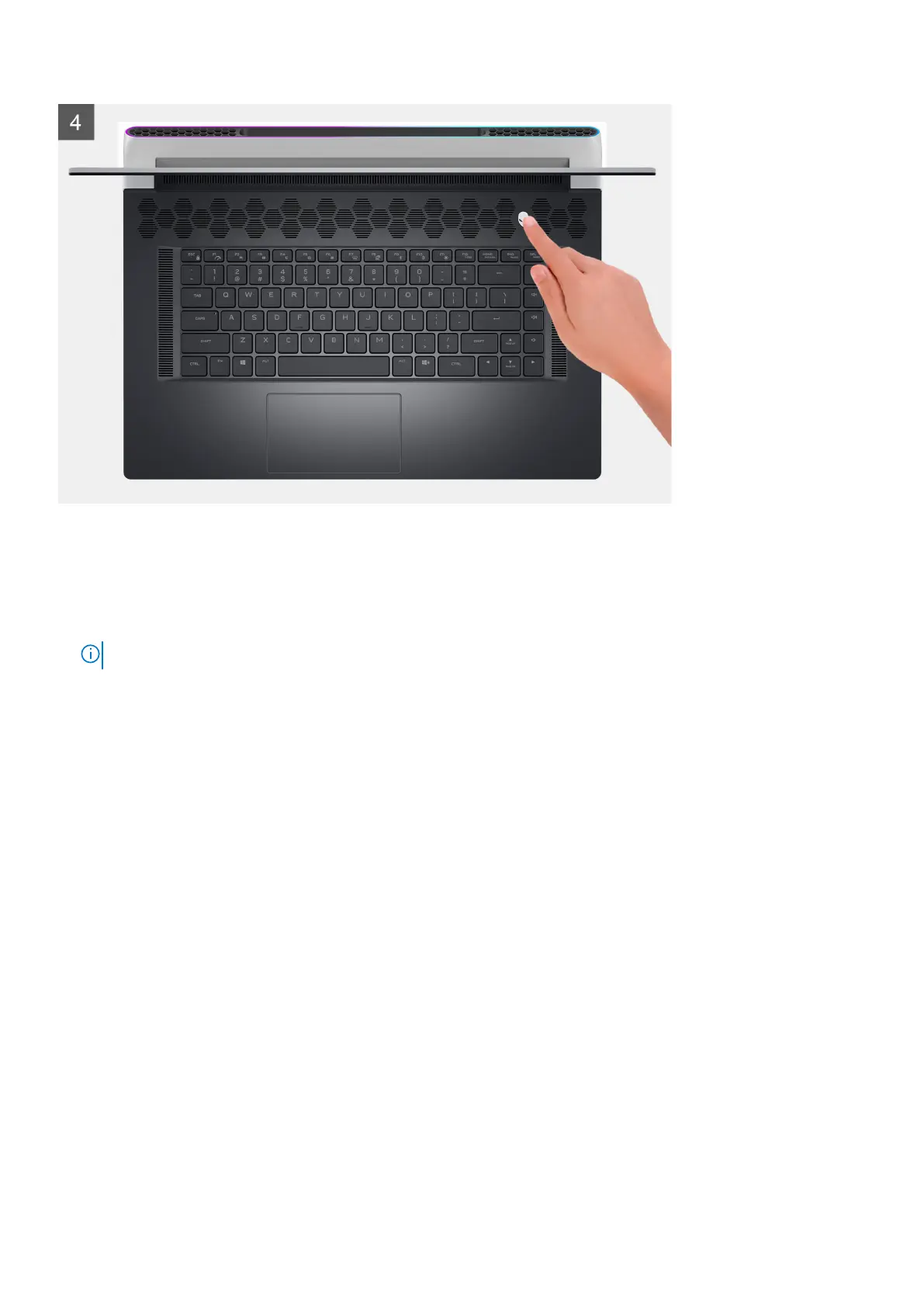

6. Turn over the computer and press the power button for 15 seconds to drain the flea power.
Installing the base cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the base cover and provides a visual representation of the installation procedure.
Removing and installing components
15
