3. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

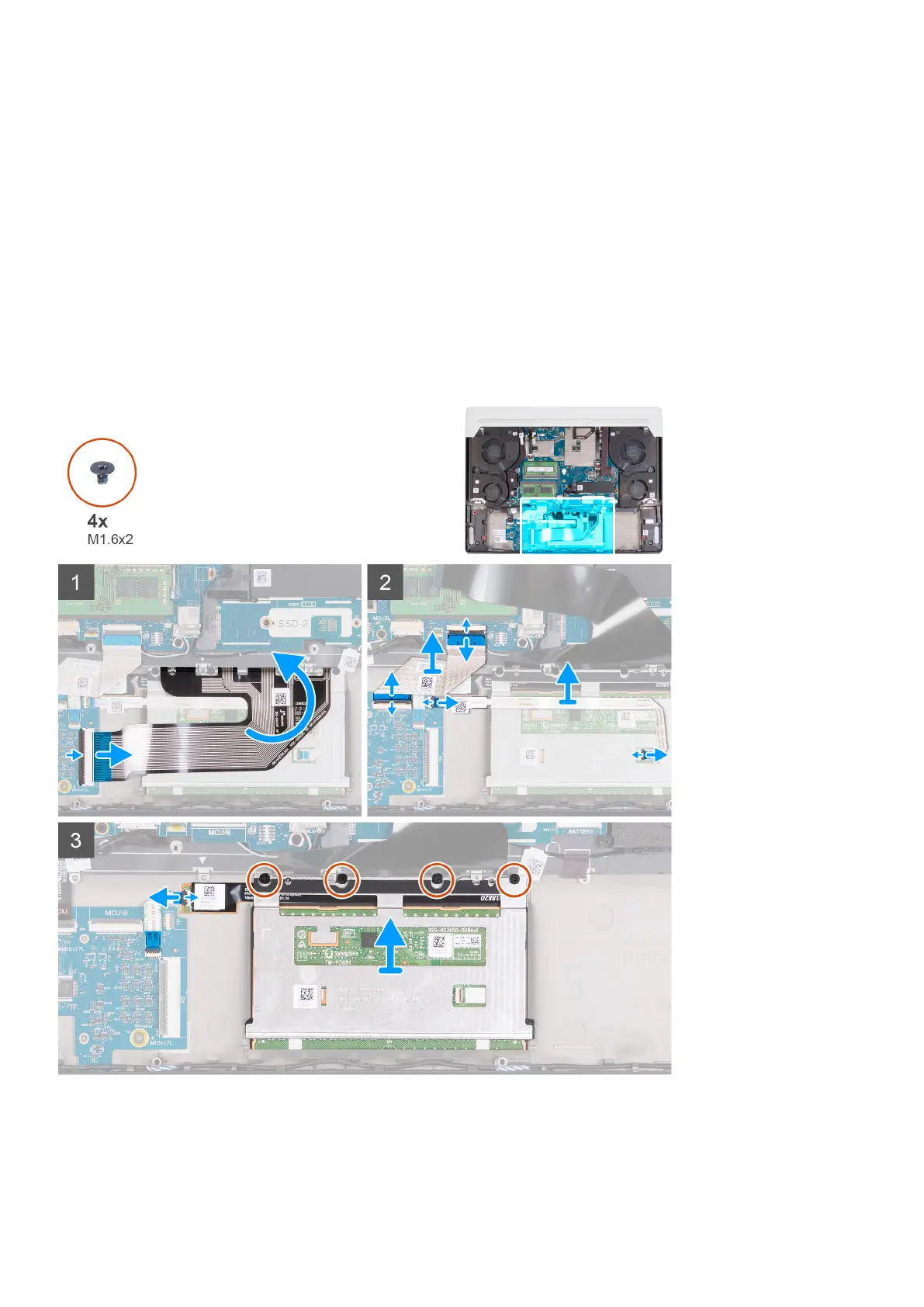

The following image(s) indicate the location of the touchpad and provides a visual representation of the removal procedure.
Steps
1. Lift the latch and disconnect the keyboard cable from the keyboard-controller board.
2. Peel and move the keyboard cable off the touchpad.
3. Lift the latches and disconnect the keyboard-controller board cable from the system board and keyboard-controller board.
Removing and installing components
47
