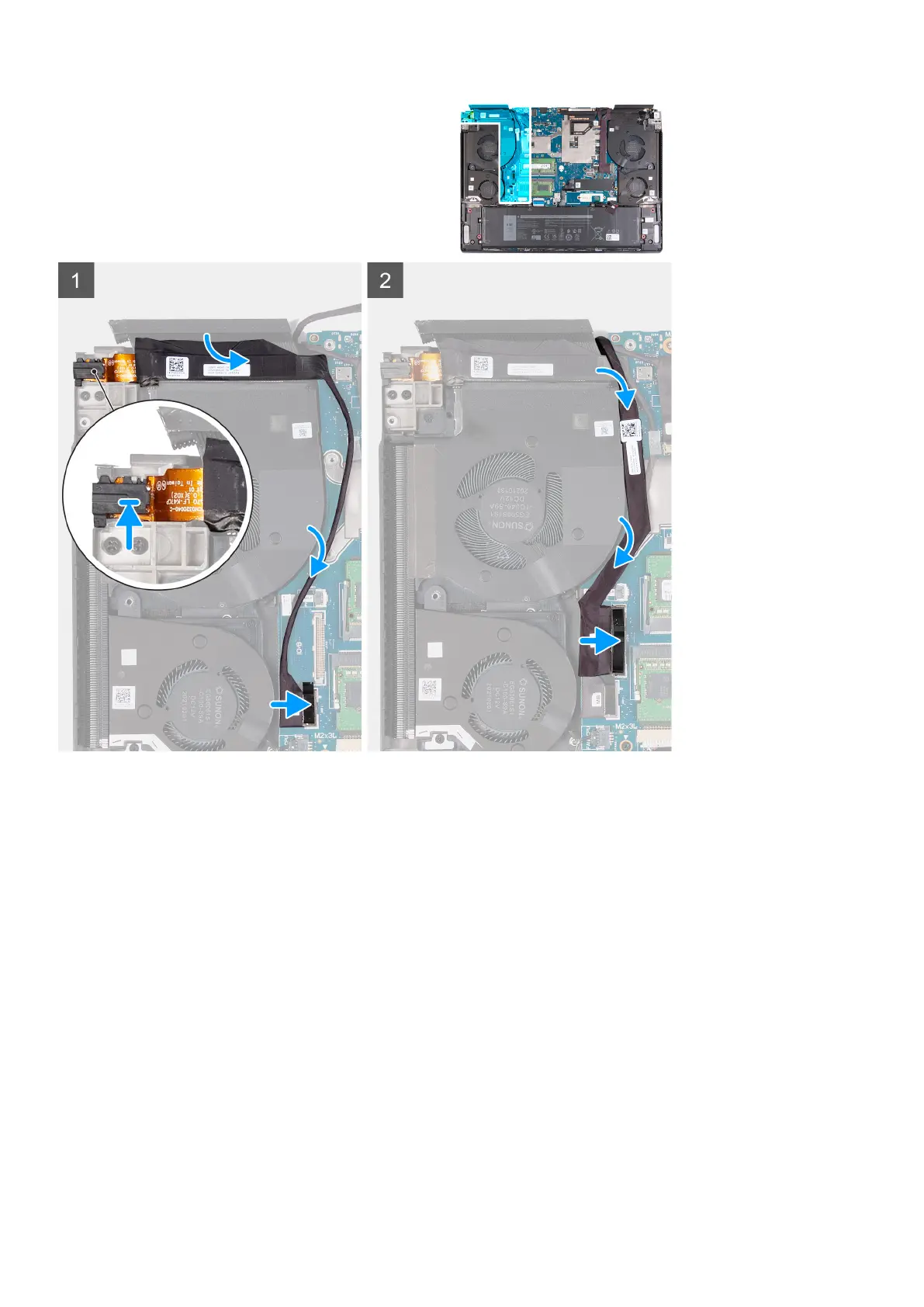

Steps
1. Place the headset port into the slot on the palm-rest and keyboard assembly.
2. Adhere the headset-port cable to the palm-rest and keyboard assembly.
3. Connect the headset-port cable to the system board.
4. Move the I/O-board cable back into place and connect the I/O-board cable to the system board.
Next steps
1. Install the rear-I/O cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
34
Removing and installing components
