Steps
1. Using the pull tab, disconnect the I/O-board cable from the system board.
2. Move the I/O-board cable off the system board and headset-port cable.
3. Using the pull tab, disconnect the headset-port cable from the system board.
4. Peel the headset-port cable off the palm-rest and keyboard assembly and lift the headset port and its cable off the
palm-rest and keyboard assembly.
Installing the headset port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

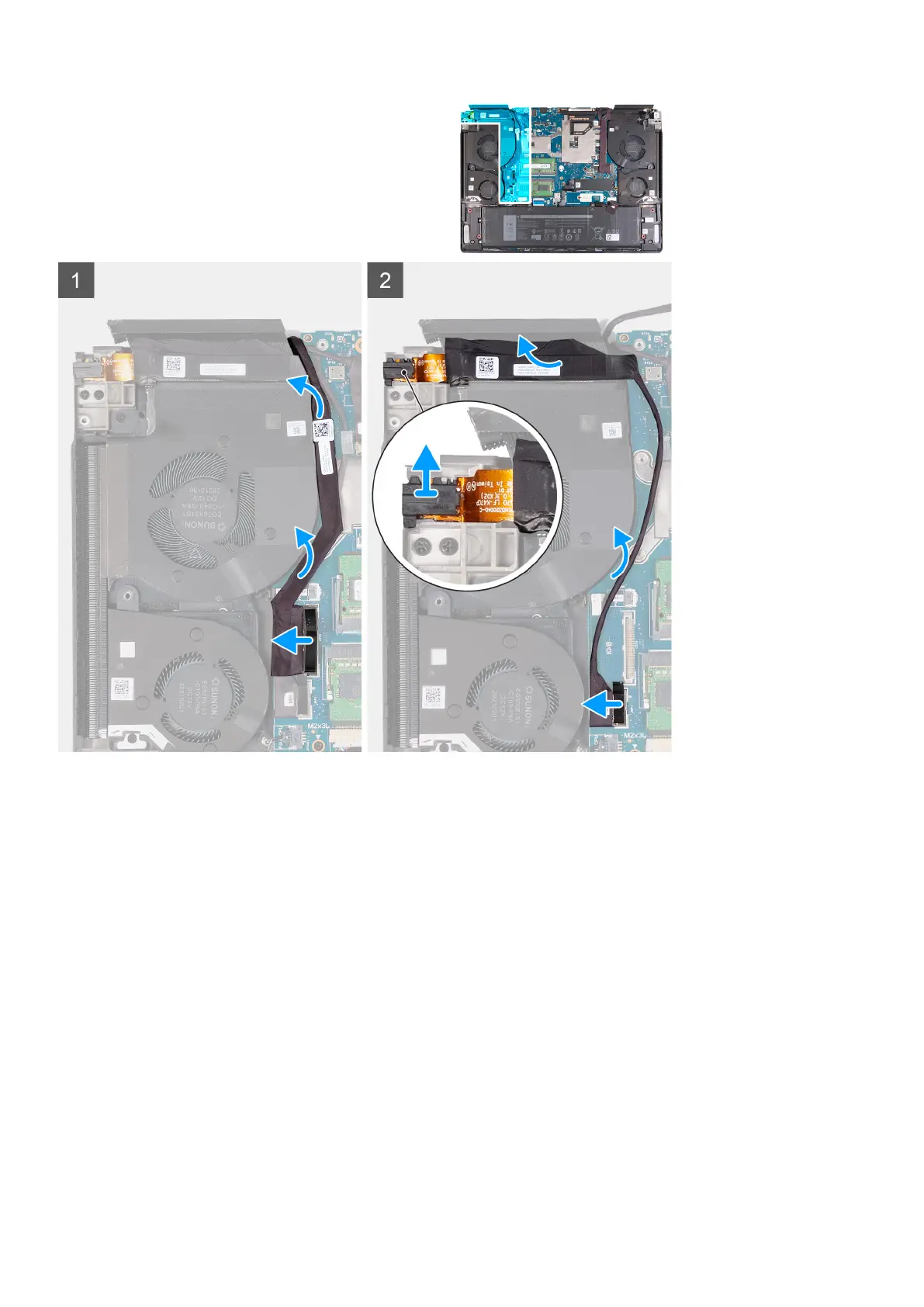

The following image(s) indicate the location of the headset port and provides a visual representation of the installation
procedure.
