Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
ā Phillips screwdriver #0, #1
ā Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

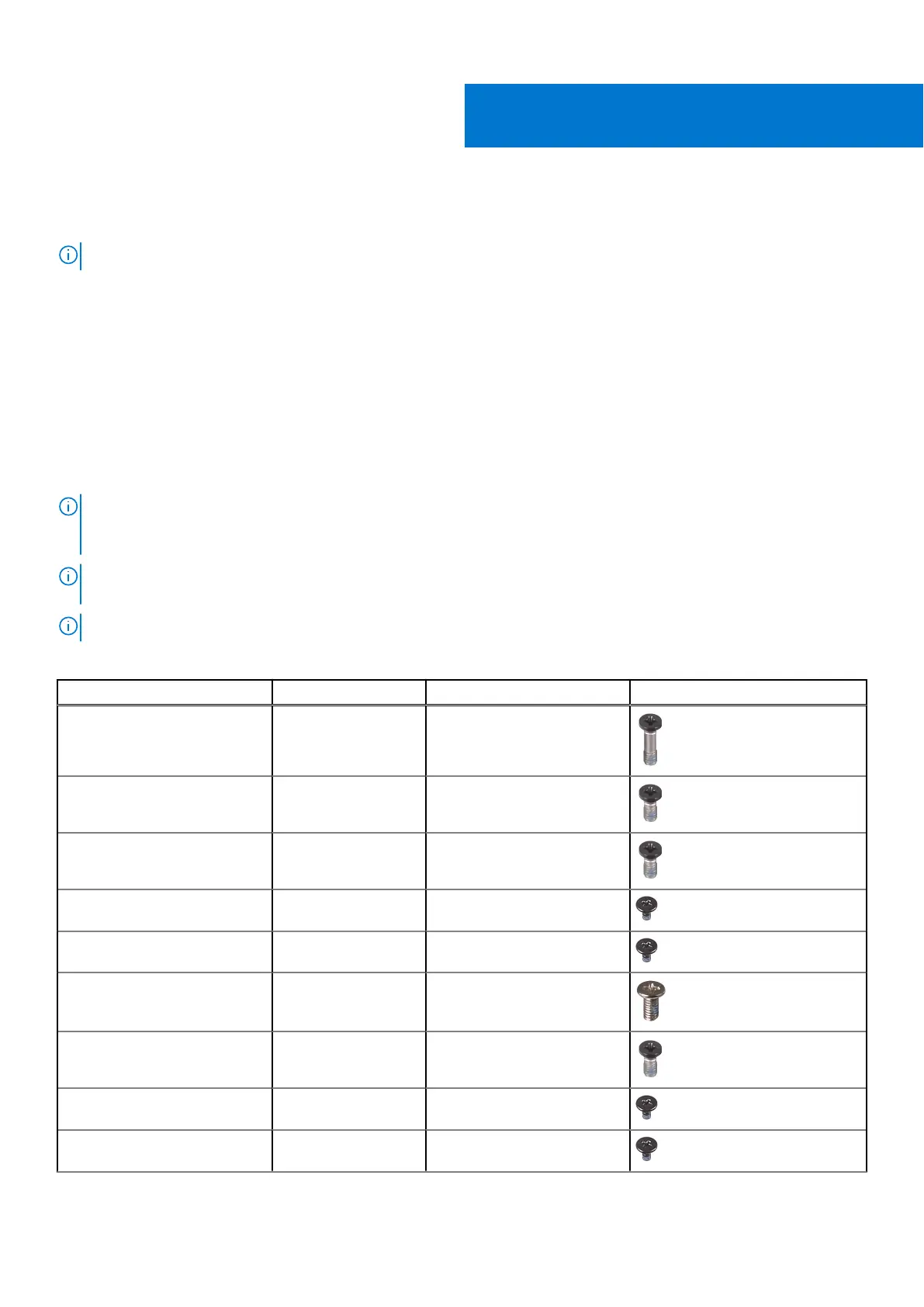

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover M2.5x9 2
Base cover M2.5x5, captive 4
Base cover M2.5x5 2
M.2 2230 solid-state drive M2x3 1 per solid-state drive
M.2 2280 solid-state drive M2x3 1 per solid-state drive
Battery M2x4 6
Rear I/O-cover M2.5x5 2
Wireless-card bracket M2x3 1
Power-adapter port-bracket M2x3 1
2
Removing and installing components 9
