About this task

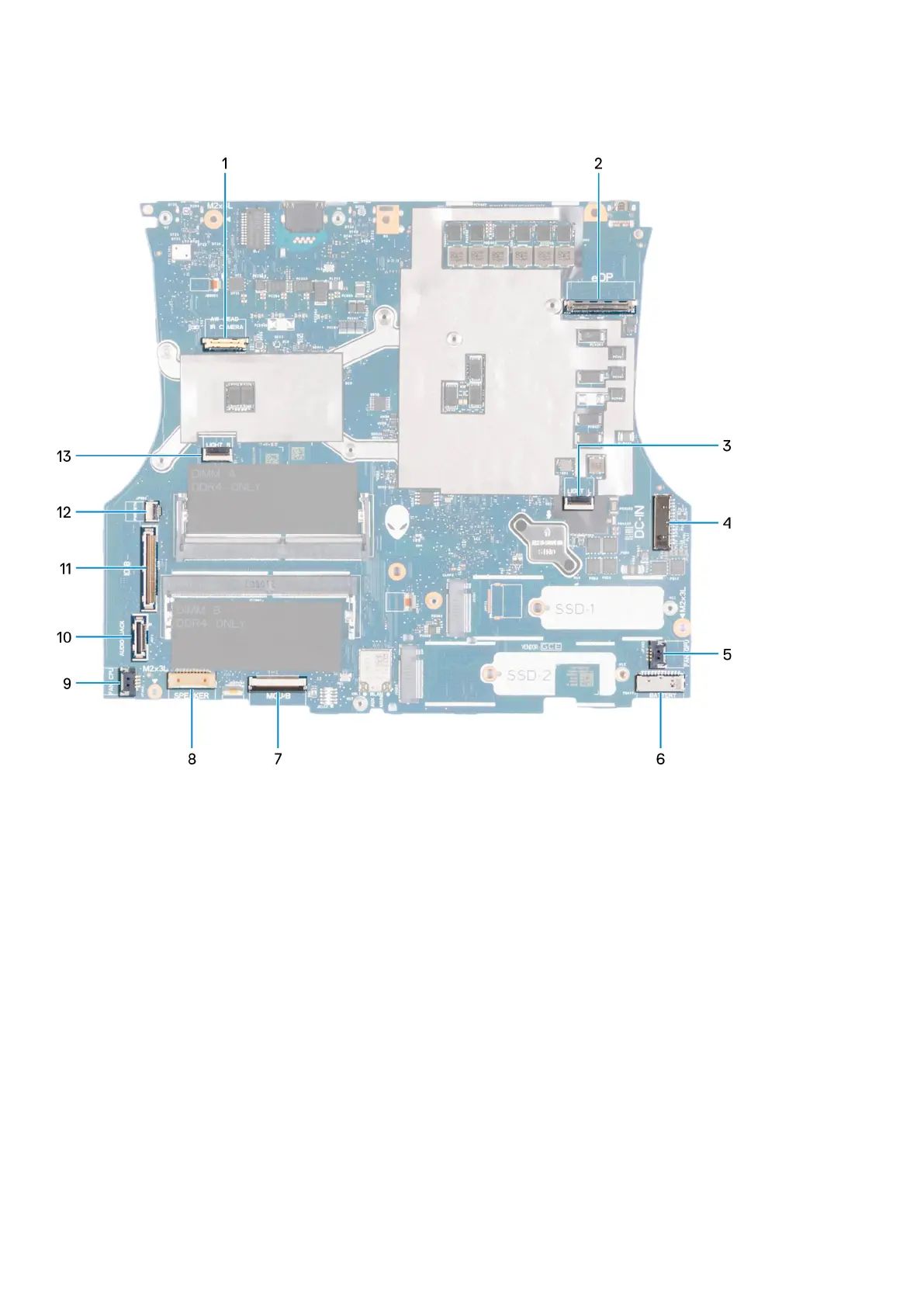

The following image indicates the connectors on your system board.
1. Camera cable
2. Display cable
3. Left Tron-light cable
4. Power-button cable
5. Right fan cable
6. Battery cable
7. Keyboard-controller board cable
8. Speaker cable
9. Left fan cable
10. Headset port cable
11. I/O-board cable
12. Power button cable
13. Right Tron-light cable
The following image(s) indicate the location of the system board and provides a visual representation of the installation
procedure.
Removing and installing components
55
