Dell E30S Series

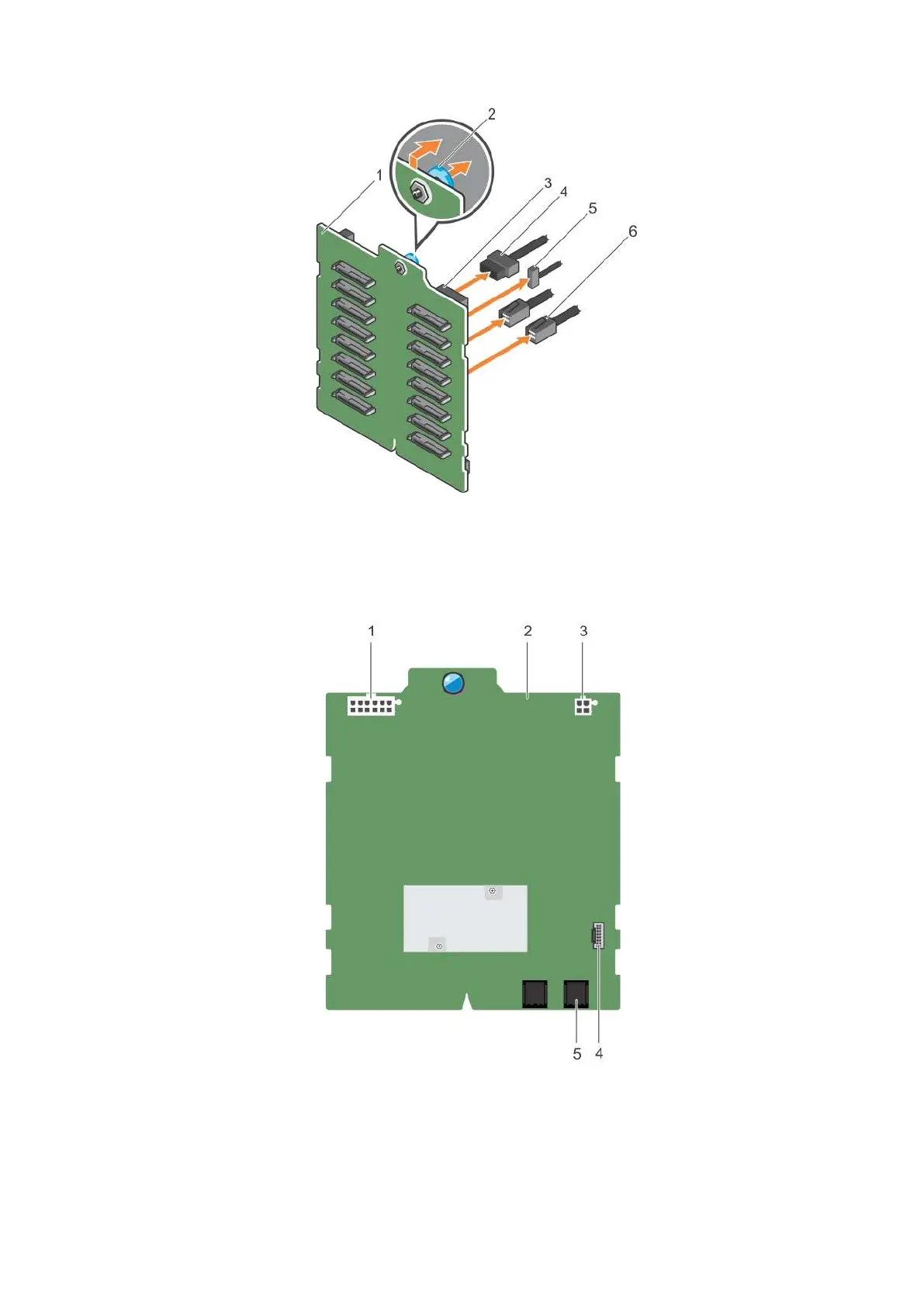

Figure 47. Removing an x16 hard drive backplane
1. x16 hard drive backplane 2. release pin
3. power connector 4. power cable
5. signal cable 6. SAS cable
Figure 48. Connectors on an x16 hard drive backplane
1. backplane power connector 2. x16 backplane
3. power connector for the optical and tape drives 4. signal connector
5. SAS A connector
Installing and removing system components 101
