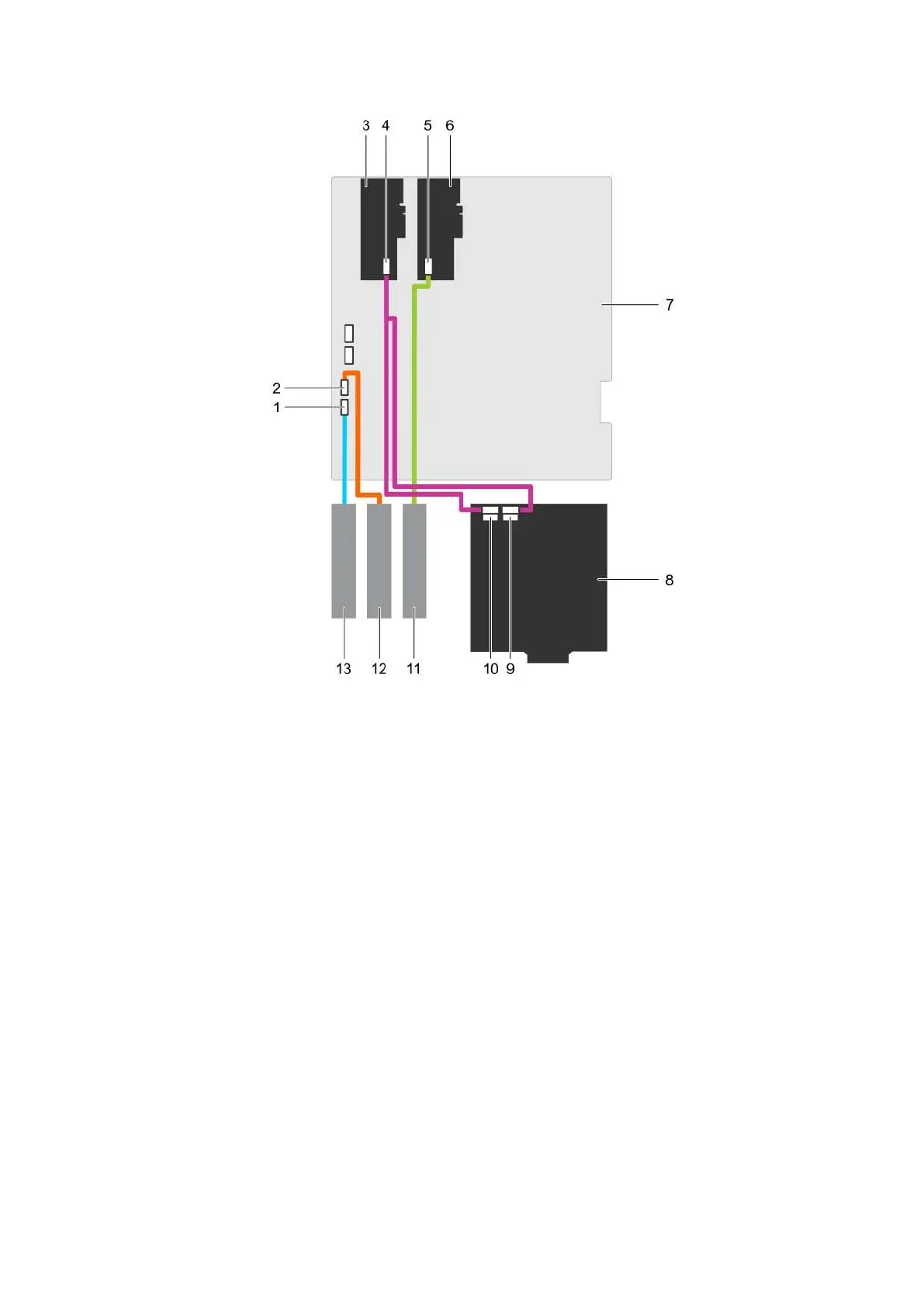

Figure 49. Cabling—x16 hard drive backplane with two PERC cards
1. SATA optical drive connector on system board 2. SATA tape drive connector on system board
3. PERC card 4. SAS connector on PERC card
5. SAS connector on PERC card 6. PERC card
7. system board 8. x16 backplane
9. SAS B connector on the x16 backplane 10. SAS A connector on the x16 backplane
11. SAS tape drive 12. SATA tape drive
13. optical drive
102 Installing and removing system components
