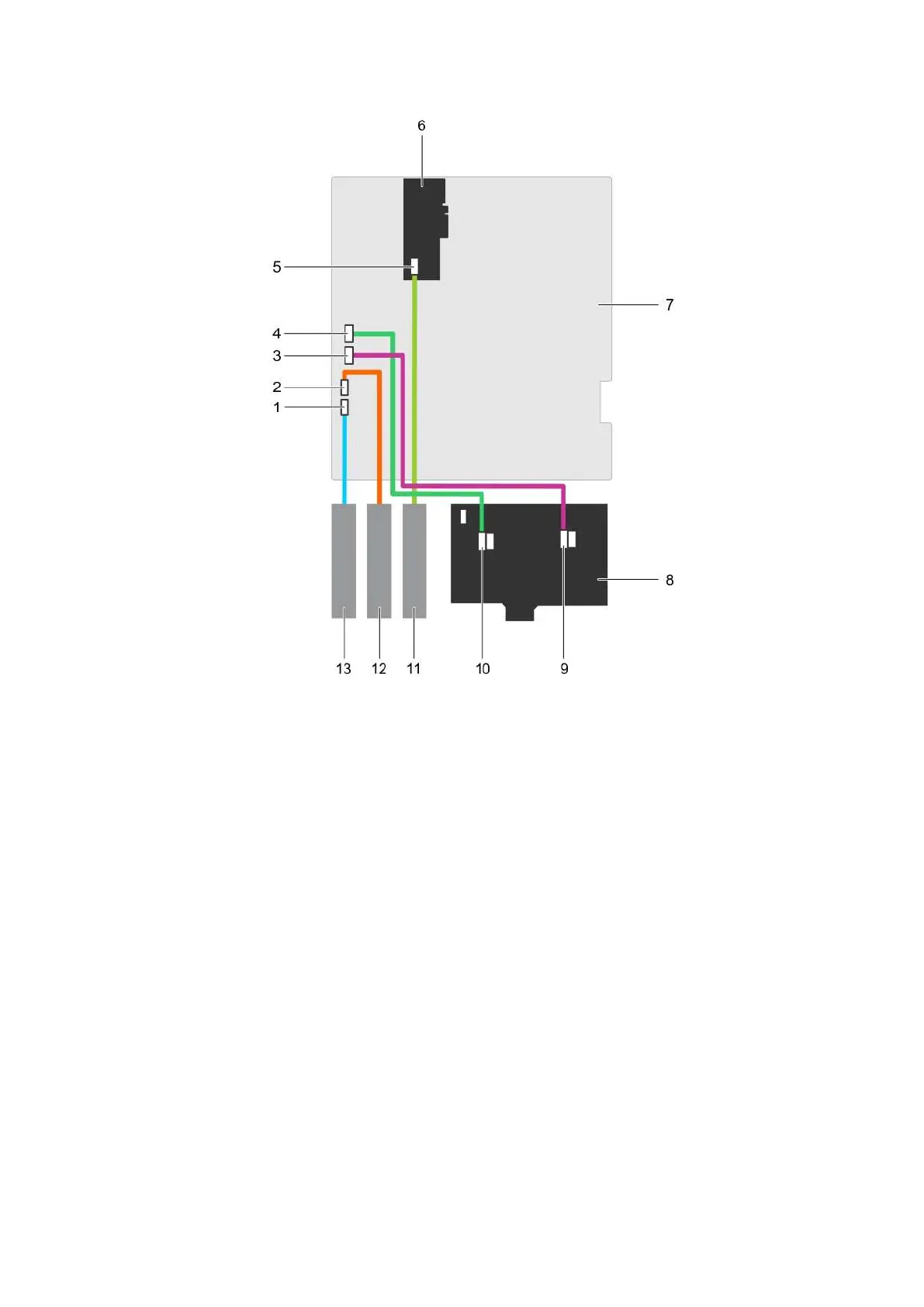

Figure 50. Cabling—x8 hard drive backplane with one PERC card
1. SATA optical drive connector on system board 2. SATA tape drive connector on system board
3. SATA B connector on system board 4. SATA A connector on system board
5. SAS connector on PERC card 6. PERC card
7. system board 8. x8 backplane
9. SAS B connector on backplane 10. SAS A connector on backplane
11. SAS tape drive 12. SATA tape drive
13. optical drive
