Dell EMC Core XC750 - Installing the 2 X 2.5-Inch Rear Drive Module

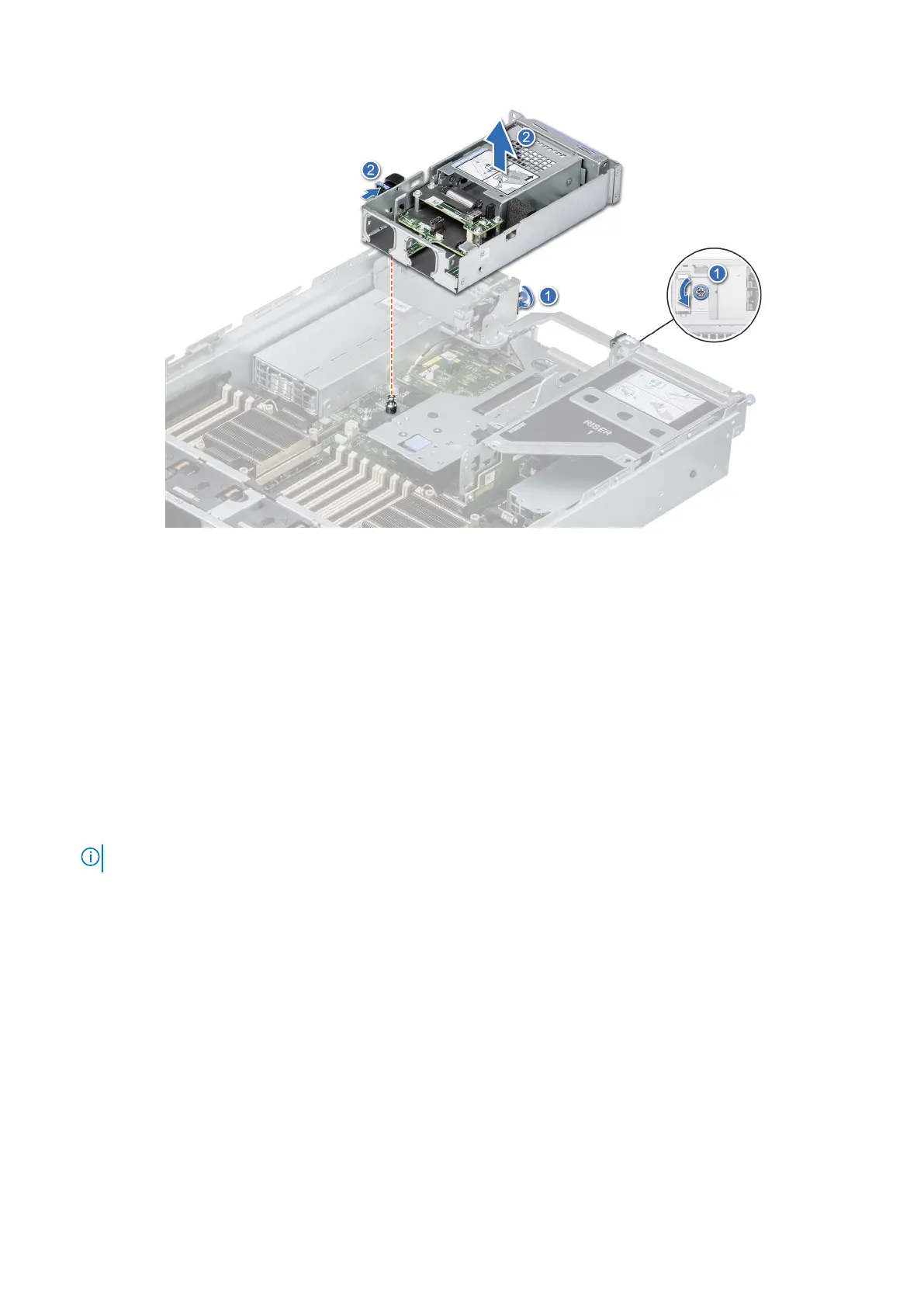

Figure 55. Removing the 2 x 2.5-inch rear drive module
Next steps
1. Replace the 2 x 2.5-inch rear drive module.
Installing the 2 x 2.5-inch rear drive module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system
3. If required, remove the air shroud.
4. Remove the drives.
5. Disconnect the cables from the rear drive module.
NOTE: Refer cable routing topic for more information.
Steps
1. Align the slot on the rear drive module with the guide on the system.
2. Place the rear drive module on top of the riser until firmly seated.
3. Using a Phillips #2 screwdriver, tighten the captive screws that secures the rear drive module to the system.
