Dell EMC VMAX 250F - Three-Phase, International: EF-PCBL3 YAG (VMAX 450 F, VMAX 850 F), ET- PCBL3 YAG (VMAX 950 F), ES-PCBL3 YAG (VMAX 250 F)

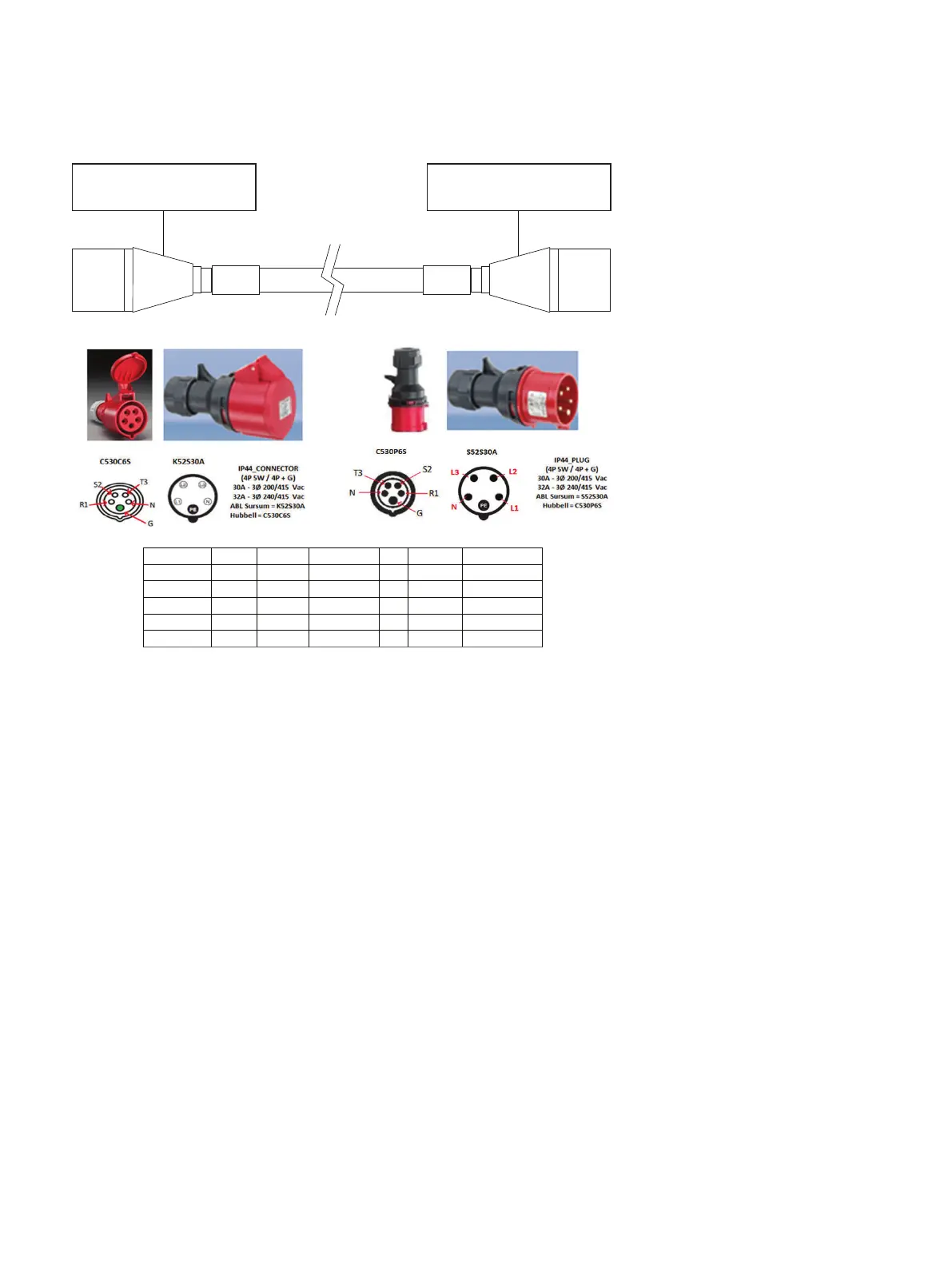

Figure 27 Three-phase, international: EF-PCBL3YAG (VMAX 450F, VMAX 850F), ET-
PCBL3YAG (VMAX 950F), ES-PCBL3YAG (VMAX 250F)
P1
ABL Sursum - K52S30A or
Hubbell - C530C6S
P2
ABL Sursum - S52S30A or
Hubbell - C530P6S
Wire Color
From
Hubbell
ABL-Surum
To
Hubbell
ABL-Surum
BRN
P1
R1
L1
P2
R1
L1
BLK
P1
S2
L2
P2
S2
L2
GRY
P1
T3
L3
P2
T3
L3
BLU
P1
N
N
P2
N
N
GRN/YEL
P1
G
PE
P2
G
PE
