Dell Latitude E7450 - Removing the Hard Drive

Installing the Base Cover
1. Place the base cover to align with the screw holes correctly on the computer.
2. Tighten the screws to secure the base cover to the computer.
3. Install the battery.
4. Follow the procedures in After Working Inside Your computer.
Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. battery
b. base cover

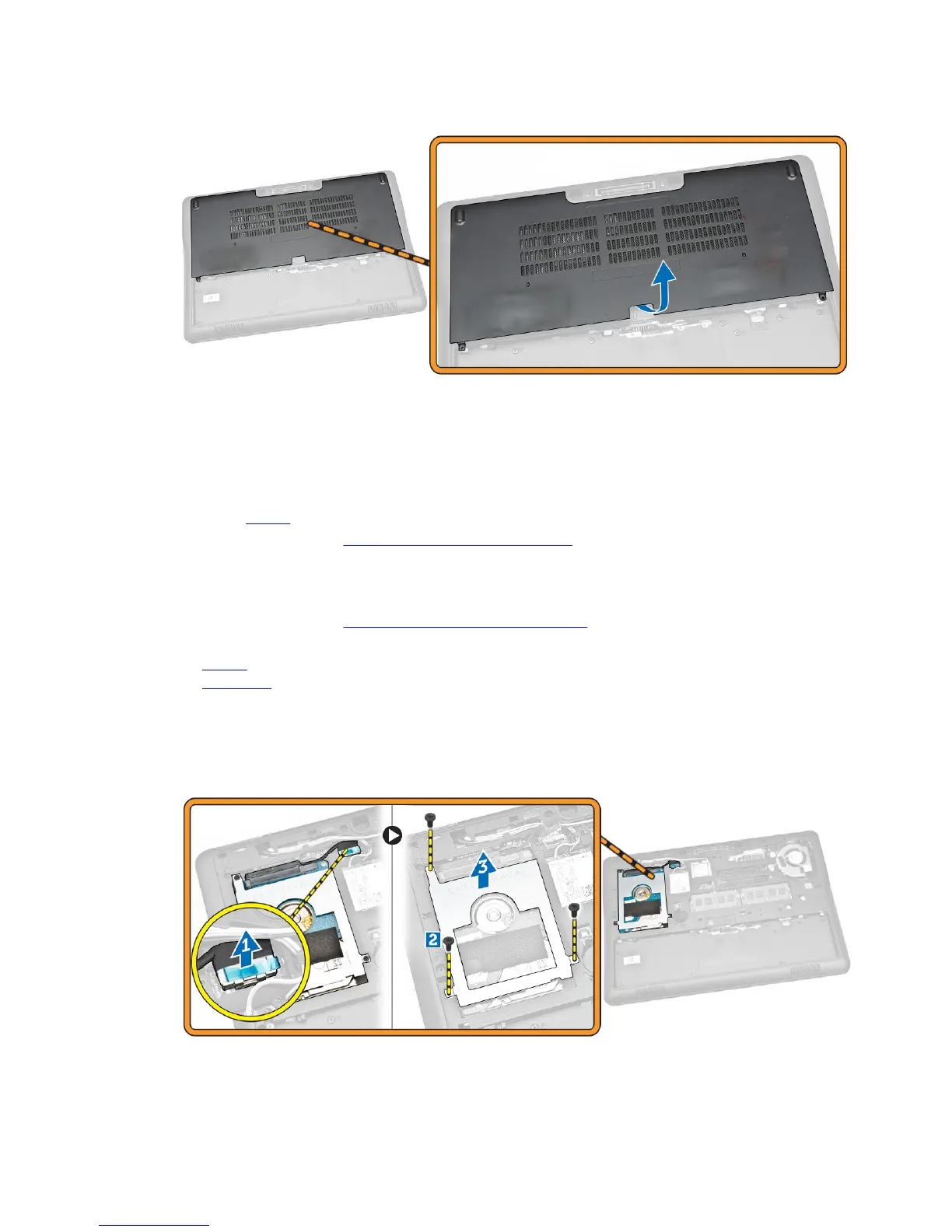

3. Perform the following steps as shown in the illustration:
a. Disconnect the hard-drive cable from the computer [1].
b. Remove the screws that secure the hard-drive bracket to the hard drive [2].
c. Remove the hard-drive bracket to release the hard drive [3].
13
