5. Pull the WLAN, WWAN and display-assembly cables from the holes on the base chassis that secure
the display assembly to the computer.

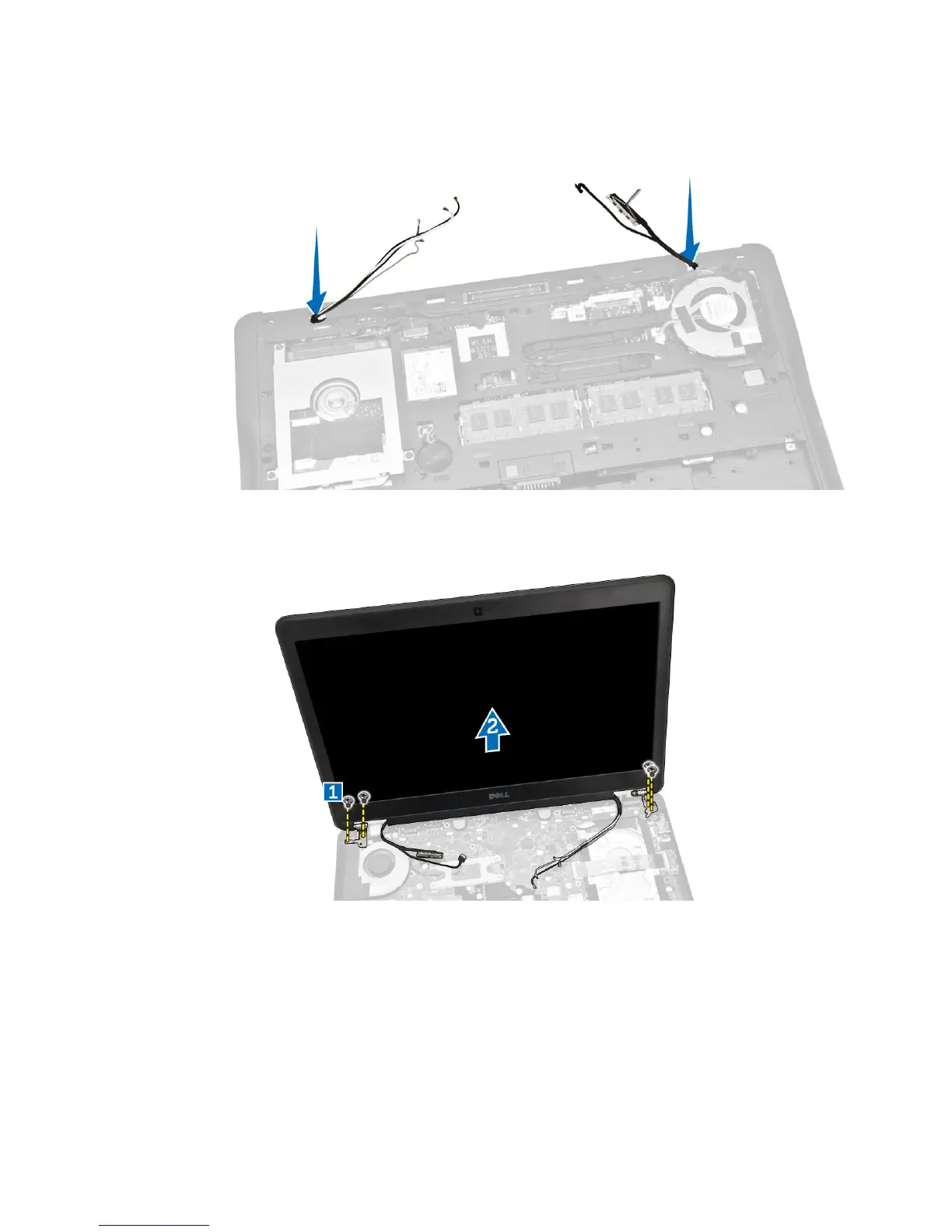

6. Perform the following steps as shown in the illustration:
a. Remove the screws that secure the display assembly to the computer [1].
b. Lift the display assembly to remove from the computer [2].
Installing the Display Assembly
1. Route the WWAN, WLAN, and display-assembly cables through their respective routing channels on
the base chassis and connect to their connectors.
2. Place the display assembly onto the computer.
3. Tighten the screws to secure the display assembly to the computer.
