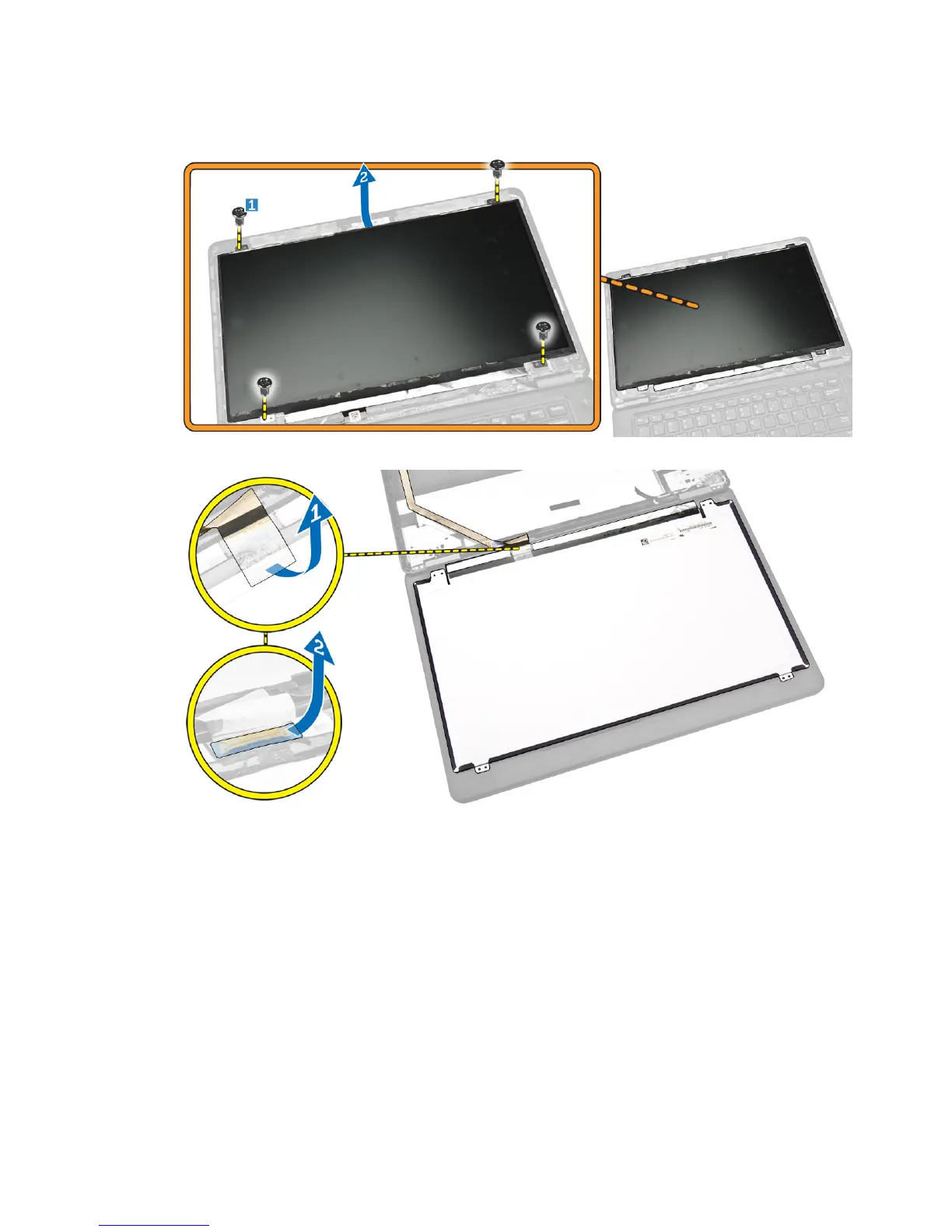

a. Remove the screws that secure the display panel to the display assembly [1].
b. Lift the display panel to access the eDP cable [2].
4. Peel the adhesive tape [1] to access the eDP cable [2].
5. Perform the following steps as shown in the illustration:
a. Disconnect the eDP cable from its connector on the display assembly [2].
b. Remove the display panel from the display assembly [3].
19
