3. Remove the 2.5-inch primary hard-disk drive or 2.5-inch secondary hard-disk drive.
About this task

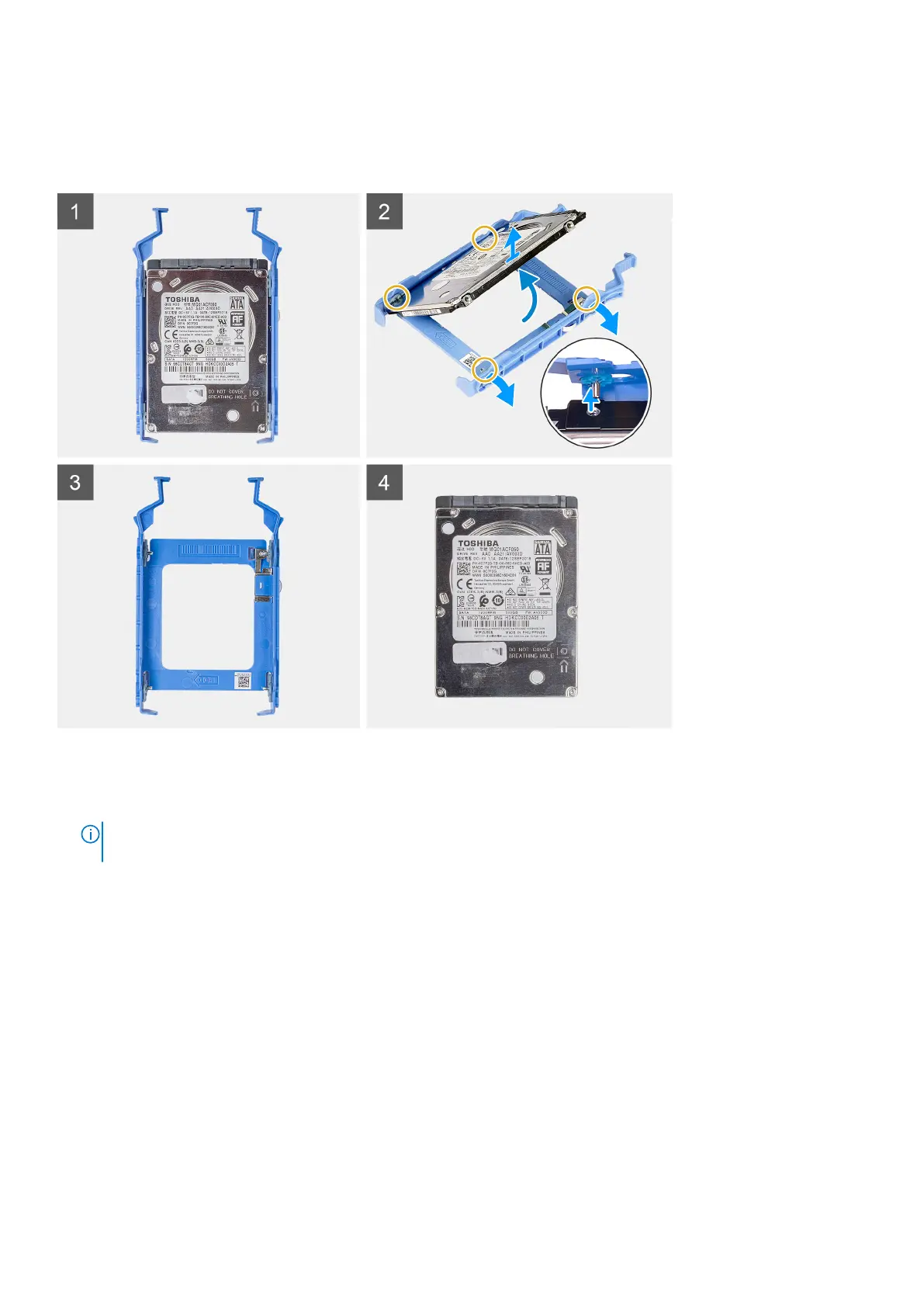

The following images indicate the location of the hard-disk drive bracket and provide a visual representation of the removal procedure.
Steps
1. Pull one side of the hard-disk drive bracket to disengage the pins on the bracket from the slots on the drive.
2. Lift the hard-disk drive out of the bracket.
NOTE:
Note the orientation or the SATA connector marking on the hard-disk drive so that you can replace it
correctly.
Installing the 2.5-inch hard-disk drive bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the 2.5-inch hard-disk drive bracket and provides a visual representation of the installation
procedure.
