Dell OptiPlex 7080 Tower - Installing the Secondary 2.5-Inch Hard-Disk Drive Assembly

Steps

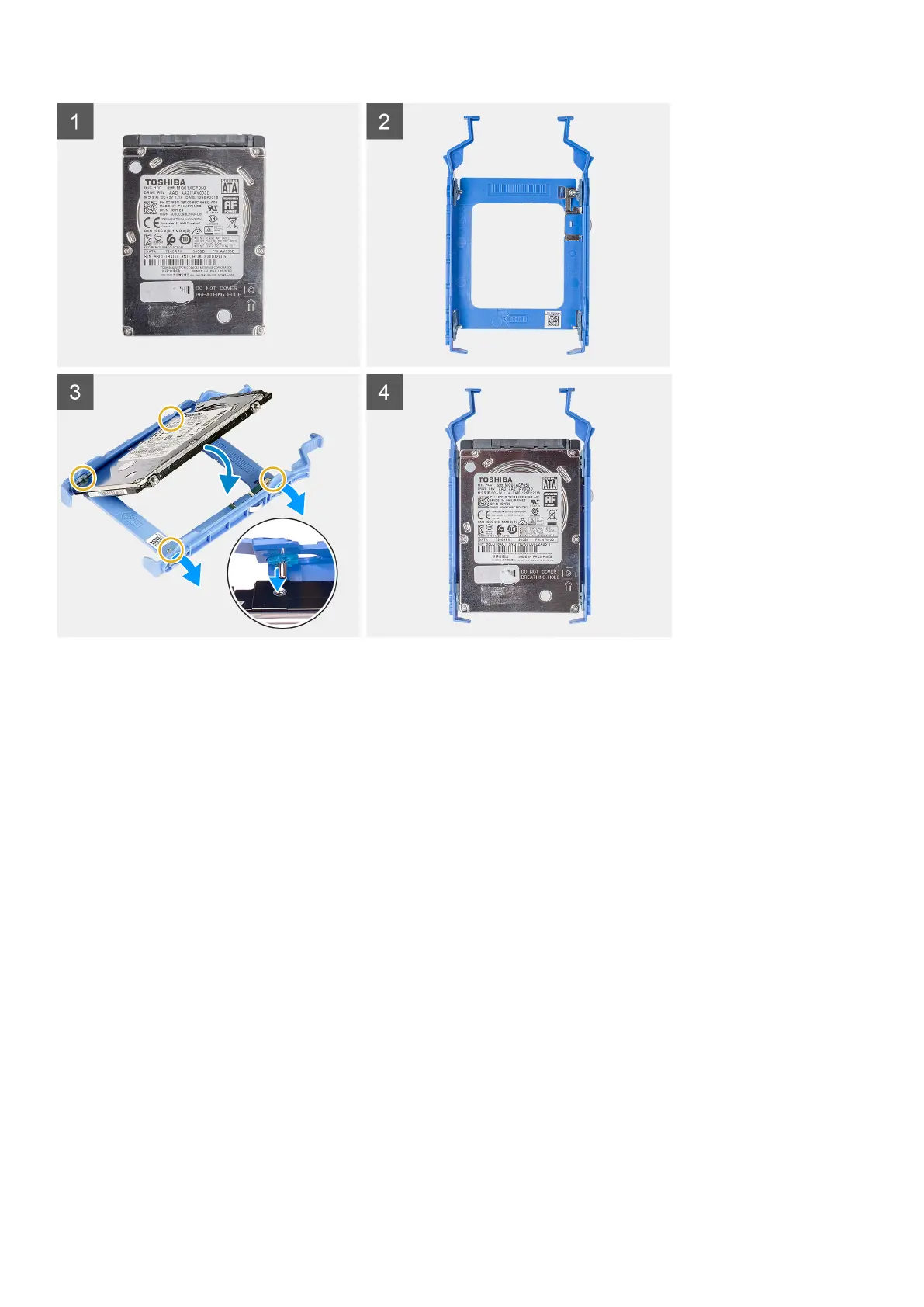

1. Align the hard-disk drive to the side of the hard-disk drive bracket.
2. Pull the other end of the hard-disk drive bracket to insert the pins on the bracket into the slot on the hard-disk drive.
3. Insert the hard-disk drive into the hard-disk drive bracket until it clicks into place.
Next steps
1. Install the 2.5-inch primary hard-disk drive or 2.5-inch secondary hard-disk drive.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Installing the secondary 2.5-inch hard-disk drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the 2.5-inch hard-disk drive assembly and provides a visual representation of the installation
procedure.
