Steps
1. Align the powered GPU with the PCI-Express card connector on the system board.
2. Using the alignment post, connect the powered GPU in the connector and press down firmly. Ensure that the powered GPU is firmly
seated.
3. Lift the pull tab to close the PCIe door.

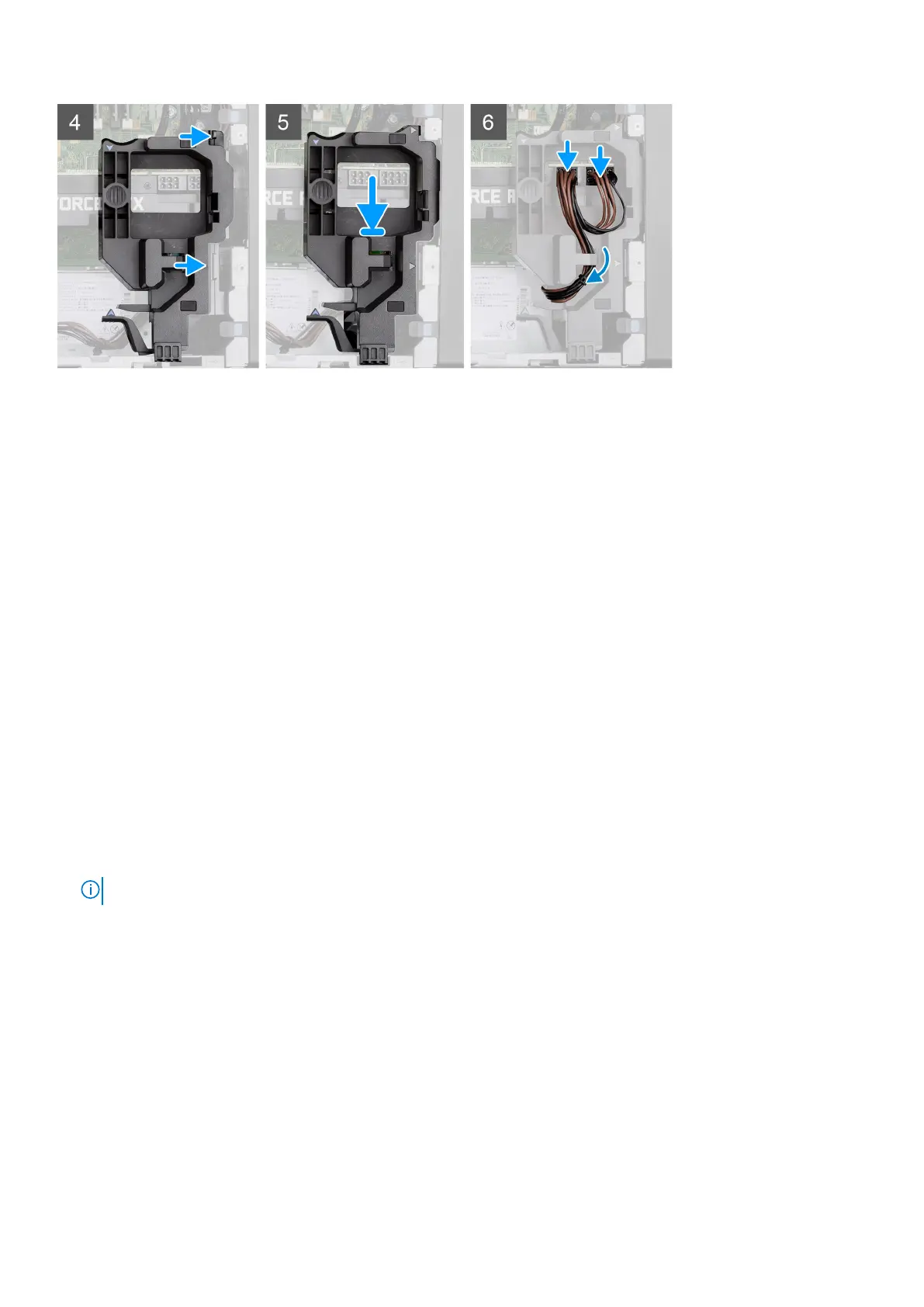

4. Align the triangles on the powered GPU cable holder with the triangles on the chassis.
5. Place the powered GPU cable holder on the computer chassis until it clicks to place.
6. Route the power cable through the retention tab on the cable holder.
7. Connect the two power cables, through the slot on the cable holder, to the connector on the powered GPU.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the powered GPU.
NOTE: This step is required only if the system is configured with powered GPU.
About this task
The following images indicate the location of the coin-cell battery and provide a visual representation of the removal procedure.
Disassembly and reassembly
53
