Installing the memory modules
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

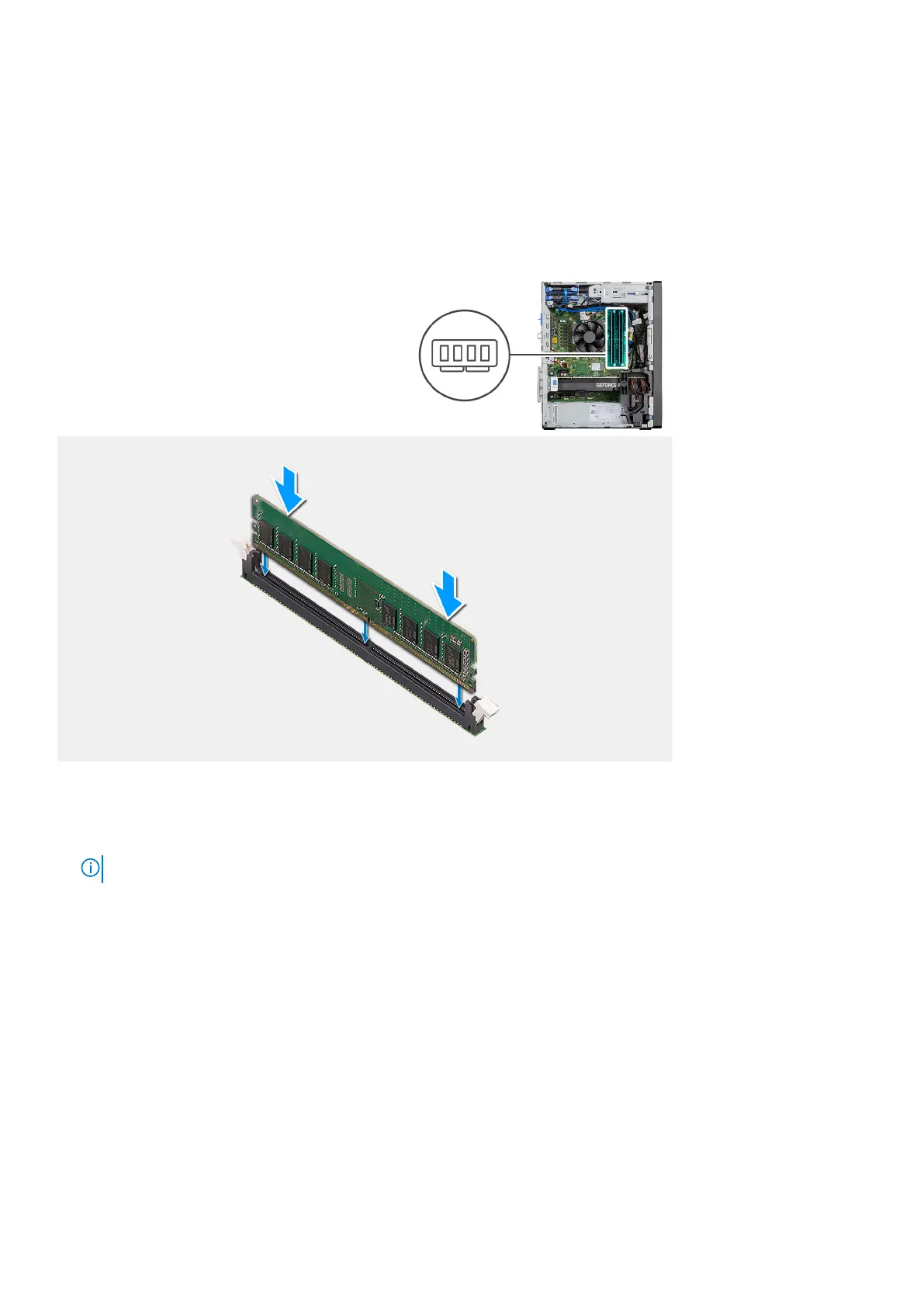

The following image indicates the location of the memory modules and provides a visual representation of the installation procedure.
Steps
1. Align the notch on the memory module with the tab on the memory-module slot.
2. Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
SD card reader (optional)
Removing the SD card reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
38
Disassembly and reassembly
