Installing the Slim-Optical Disk Drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

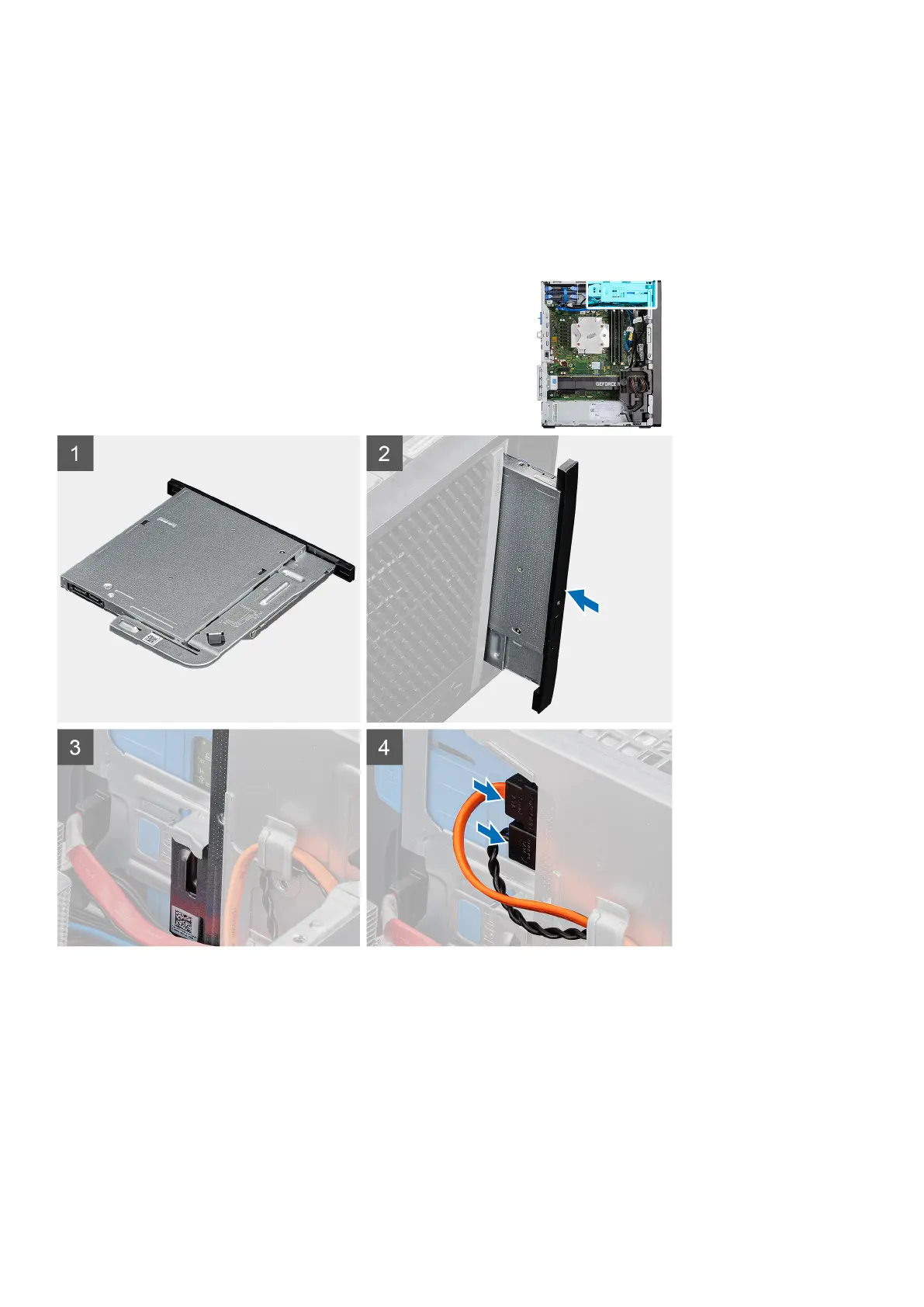

The following images indicate the location of the slim ODD and provide a visual representation of the installation procedure.
Steps
1. Insert the slim ODD assembly into the ODD slot.
2. Slide the slim ODD assembly until it snaps into place.
3. Route the power cable and data cable through the routing guides and connect the cables to the slim ODD.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Disassembly and reassembly
59
