Steps

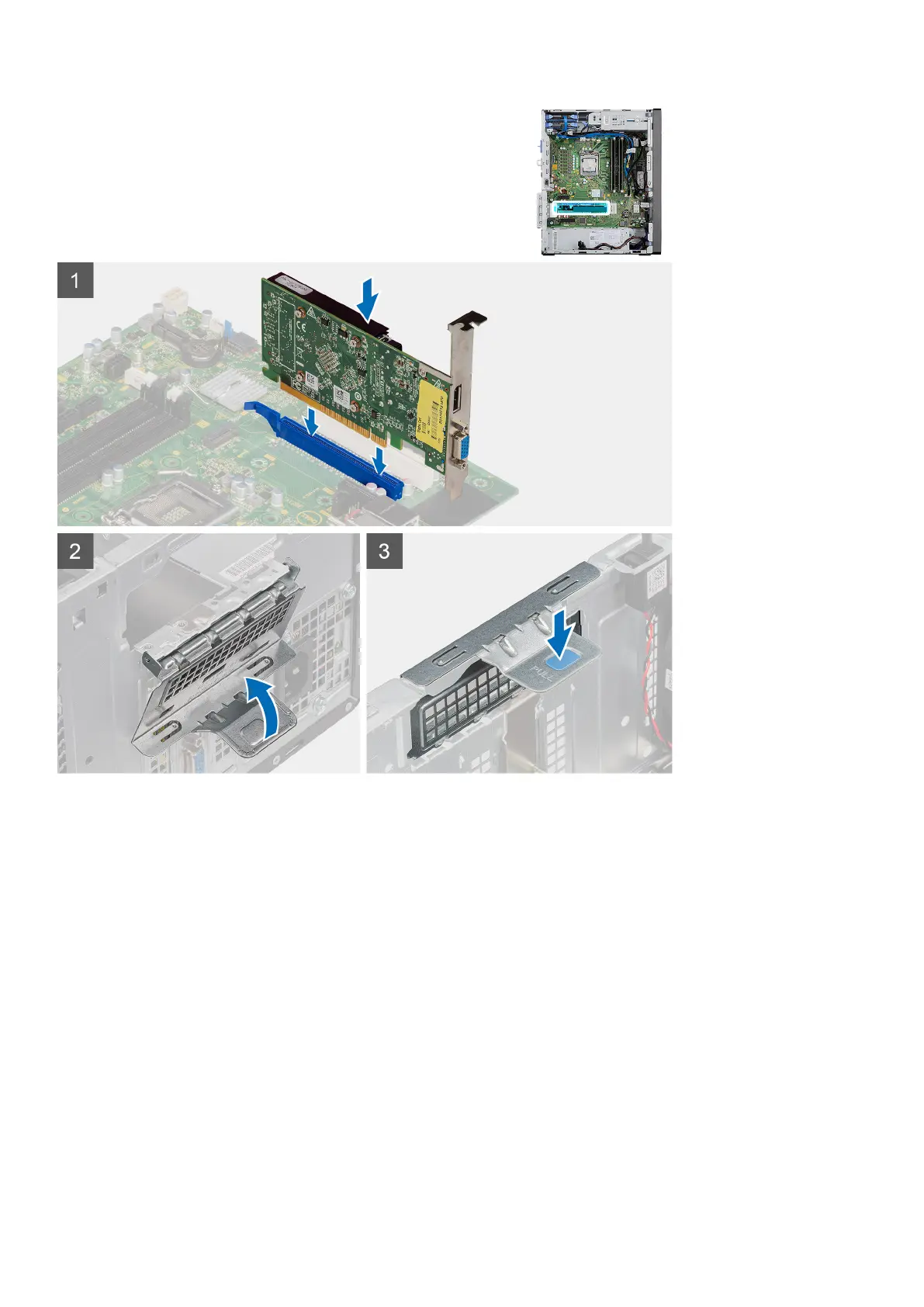

1. Align the graphics card with the PCI-Express card connector on the system board.
2. Using the alignment post, connect the graphics card in the connector and press down firmly. Ensure that the card is firmly seated.
3. Lift the pull tab to close the PCIe door.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Graphical processing unit
Removing the powered GPU
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
50
Disassembly and reassembly
