About this task

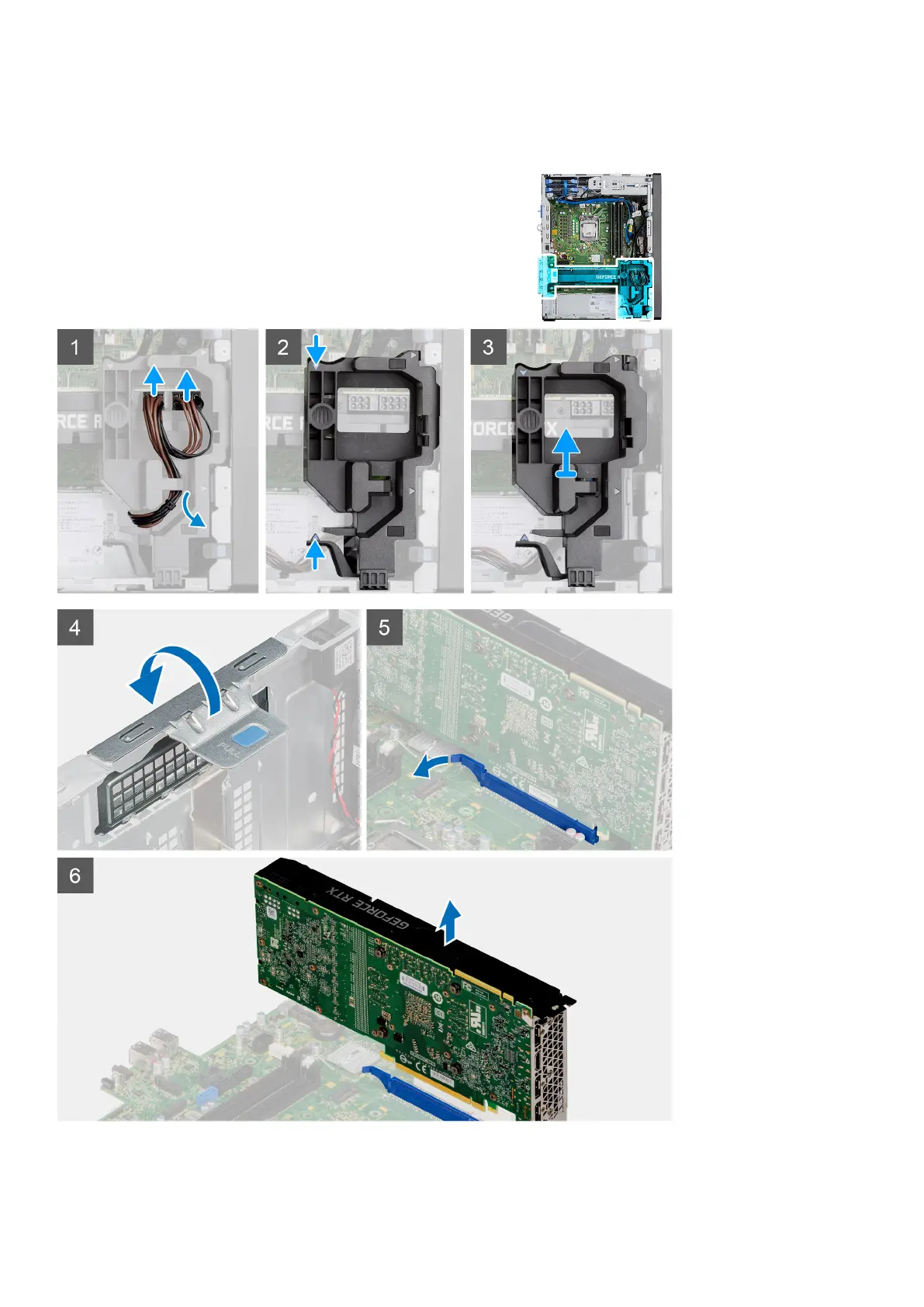

The following images indicate the location of the powered graphical processing unit and provides a visual representation of the removal
procedure.
Steps
1. Disconnect the two power cables from the connectors on the powered GPU through the cable holder.
Disassembly and reassembly
51
