Next steps
1. Install the processor fan and heat-sink assembly.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Installing the processor fan and 125 W heat-sink assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE: If either the processor or the heat sink is replaced, use the thermal grease provided in the kit to ensure that
thermal conductivity is achieved.
About this task

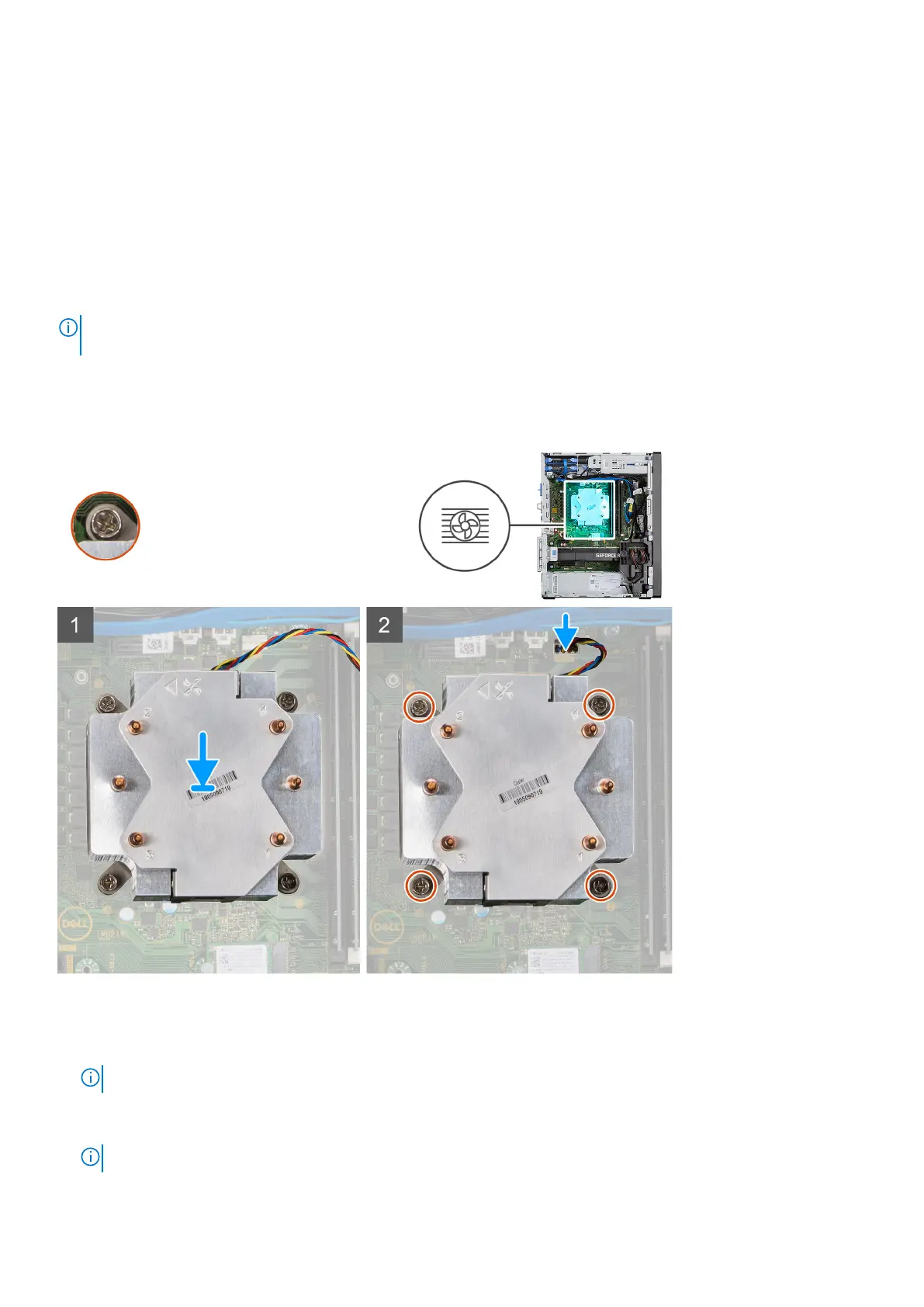

The following image indicates the location of the processor fan and 95 W heat-sink and provides a visual representation of the installation
procedure.
Steps
1. Align the screws on the processor fan and heat-sink assembly with the screw holders on the system board and place the processor
fan and heat-sink assembly on the processor.
NOTE: Ensure the triangle mark is directed towards the rear side of the computer.
2. In the sequential order (1->2->3->4), tighten the captive screws to secure the processor fan and heat-sink assembly to the system
board.
NOTE: Tighten the screws in a sequential order (1,2,3,4) as printed on the heat-sink assembly.
Disassembly and reassembly 43
