Installing the processor fan and 65 W heat-sink assembly
Prerequisites
NOTE: If either the processor or the heat sink is replaced, use the thermal grease provided in the kit to ensure that
thermal conductivity is achieved.
About this task

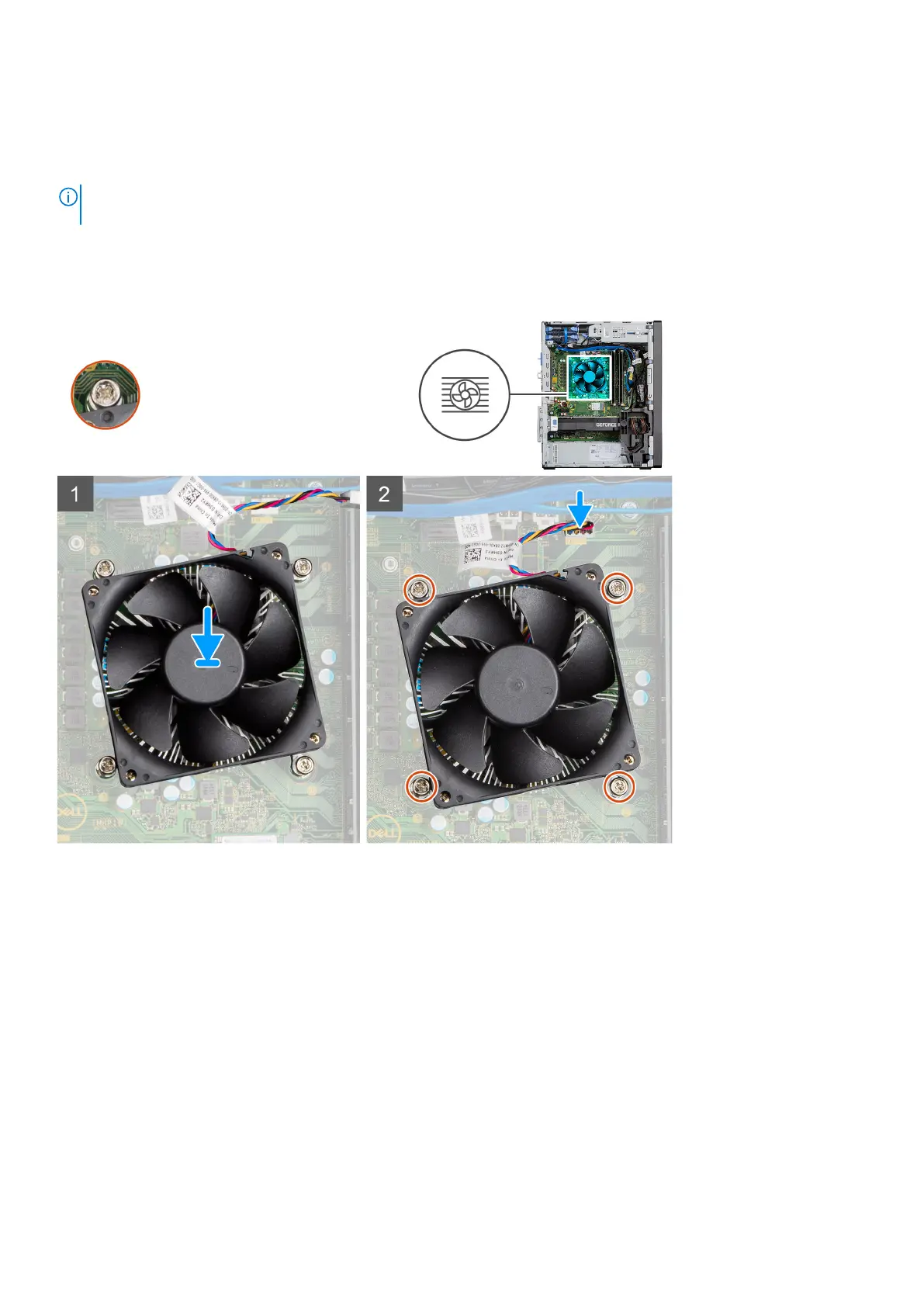

The following image indicates the location of the processor fan and heat-sink assembly and provides a visual representation of the
installation procedure.
Steps
1. Align the screw holes on the processor fan and heat-sink assembly with the screw holes on the system board.
2. Tighten the four captive screws that secure the processor fan and heat-sink assembly to the system board.
3. Connect the processor-fan cable to the connector on the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
