Steps
1. Slide the power-supply unit into the chassis until the securing tab snaps into position.
2. Replace the three screws (#6-32) that secure the power-supply unit to the chassis.

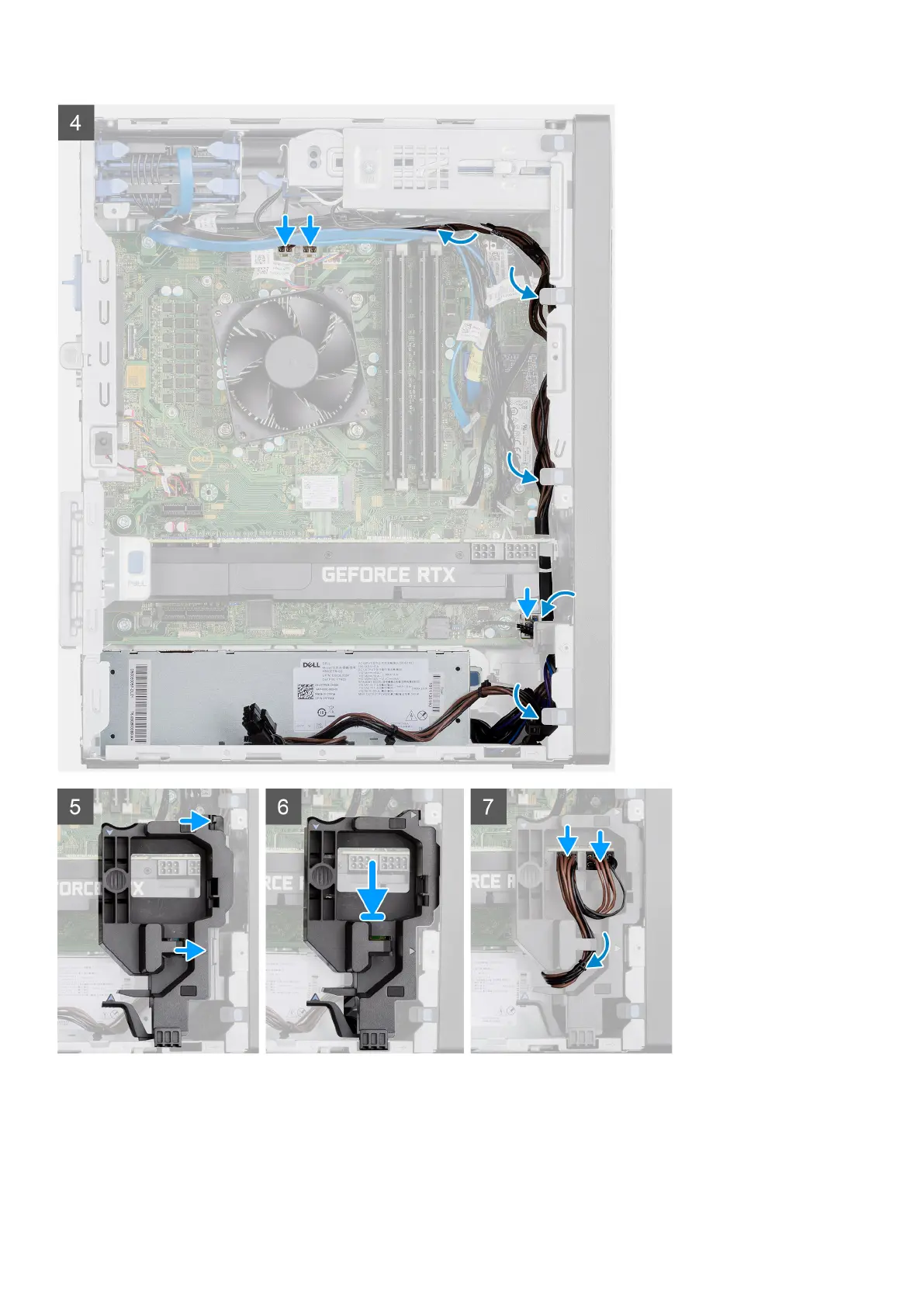

3. Route the power cable through the routing guides on the chassis and connect the power cables to their respective connectors on the
system board.
