100 Fan
9 Remove the display assembly (see "Removing the Display Assembly" on
page 55).
10 Remove the Mini-Card(s) (see "Removing the Mini-Card(s)" on page 21).
11 Follow the instructions from step 9 to step 14 in "Removing the Top
Cover" on page 83.
12 Turn the top-cover assembly over.
13 Disconnect the fan cable from the system-board connector.
14 Remove the two screws that secure the fan to the top cover.
15 Disconnect the AC-adapter connector cable from the system-board
connector.
16 Release the AC-adapter cable from the routing guide on the fan.
17 Lift the fan away from the top cover.

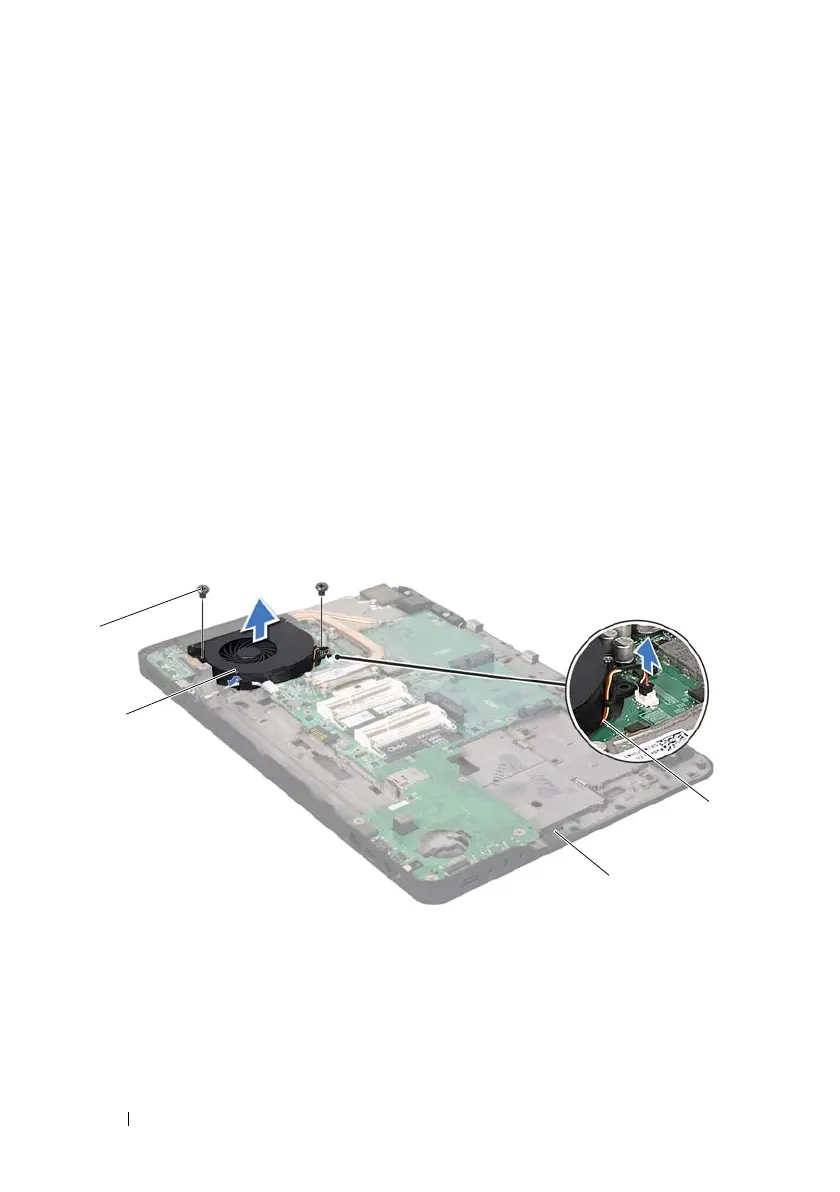

1 screws (2) 2 fan
3 top cover 4 fan cable
2
4
1
3
