Steps

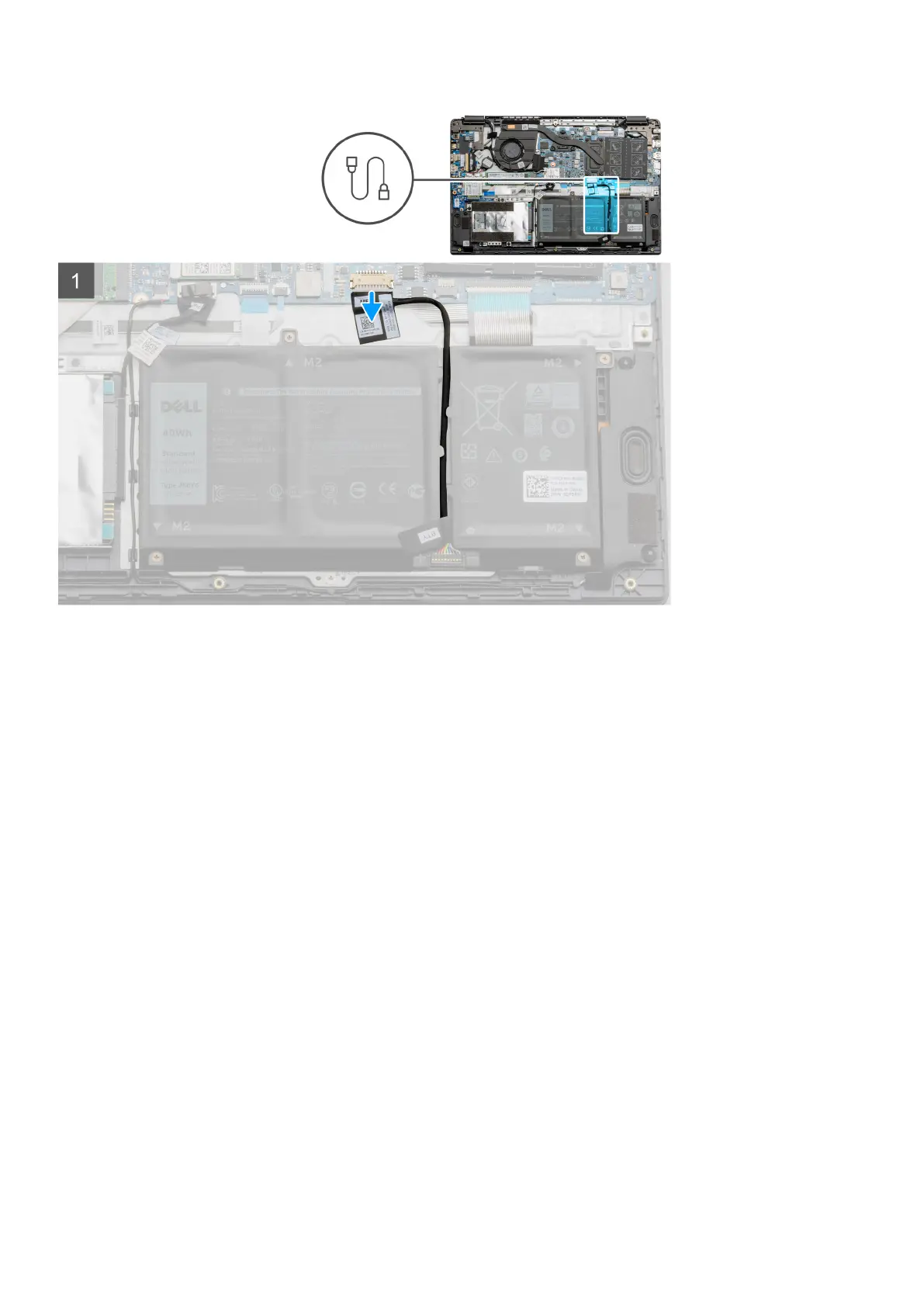

Use the pull tab to disconnect the battery cable from the connector on the system board.
Reconnecting the battery cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the battery cable and provides a visual representation of the installation procedure.
20
Disassembly and reassembly
