Steps

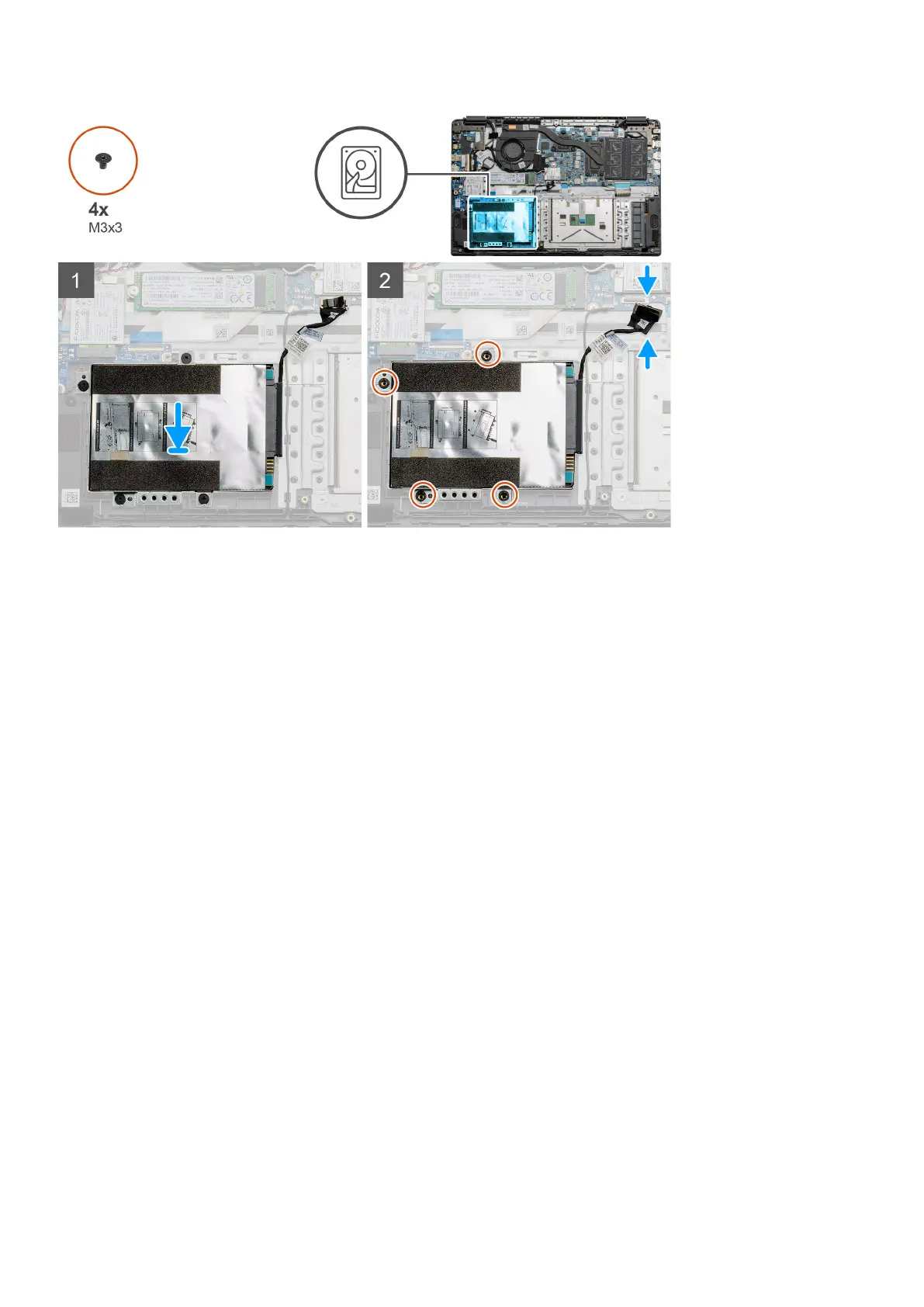

1. Align the screw holes on the hard drive assembly with the mounting points on the palmrest.
2. Replace the four M3x3 screws to secure the hard drive in place and connect the hard drive cable to the connector on the
system board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD Card.
3. Remove the base cover.
4. Remove the battery.
Disassembly and reassembly
39
