Power button
Removing the Power Button
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD Card.
3. Remove the base cover.
4. Disconnect the battery.
5. Remove the IO board.
6. Remove the solid state drive.
About this task

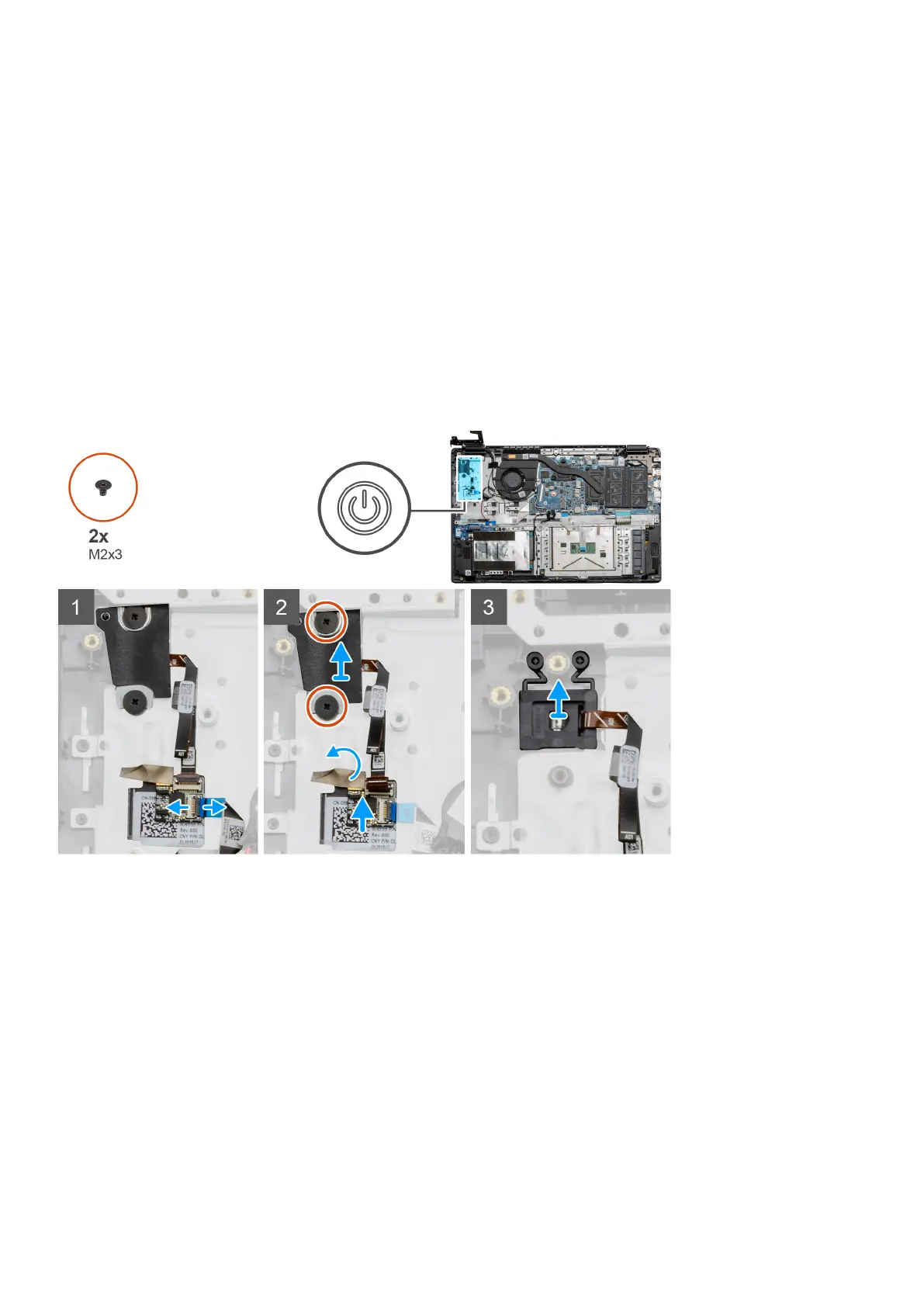

The figure indicates the location of the Power Button and provides a visual representation of the removal procedure.
Steps
1. Disconnect the system board cable from the connector on the power button daughterboard.
2. Remove the two (M2x3) screws that secure the shield over the power button module and peel back the adhesive tape from
over the power button daughterboard.
3. Lift the Power Button module away from the computer.
Installing the Power Button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the power button and provides a visual representation of the installation procedure.
Disassembly and reassembly
