9. Remove the two (M2x4) screws from the system board and the two (M2x5) screws holding the metal shield, then lift the
system board away from the chassis.
10. For systems equipped with WWAN card, flip the system over and disconnect the WWAN daughterboard cable from the
connector on the system board. Then lift and move the system board away from the computer.
NOTE: This cable can only be found on WWAN configured systems.
Installing the system board - Discrete
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

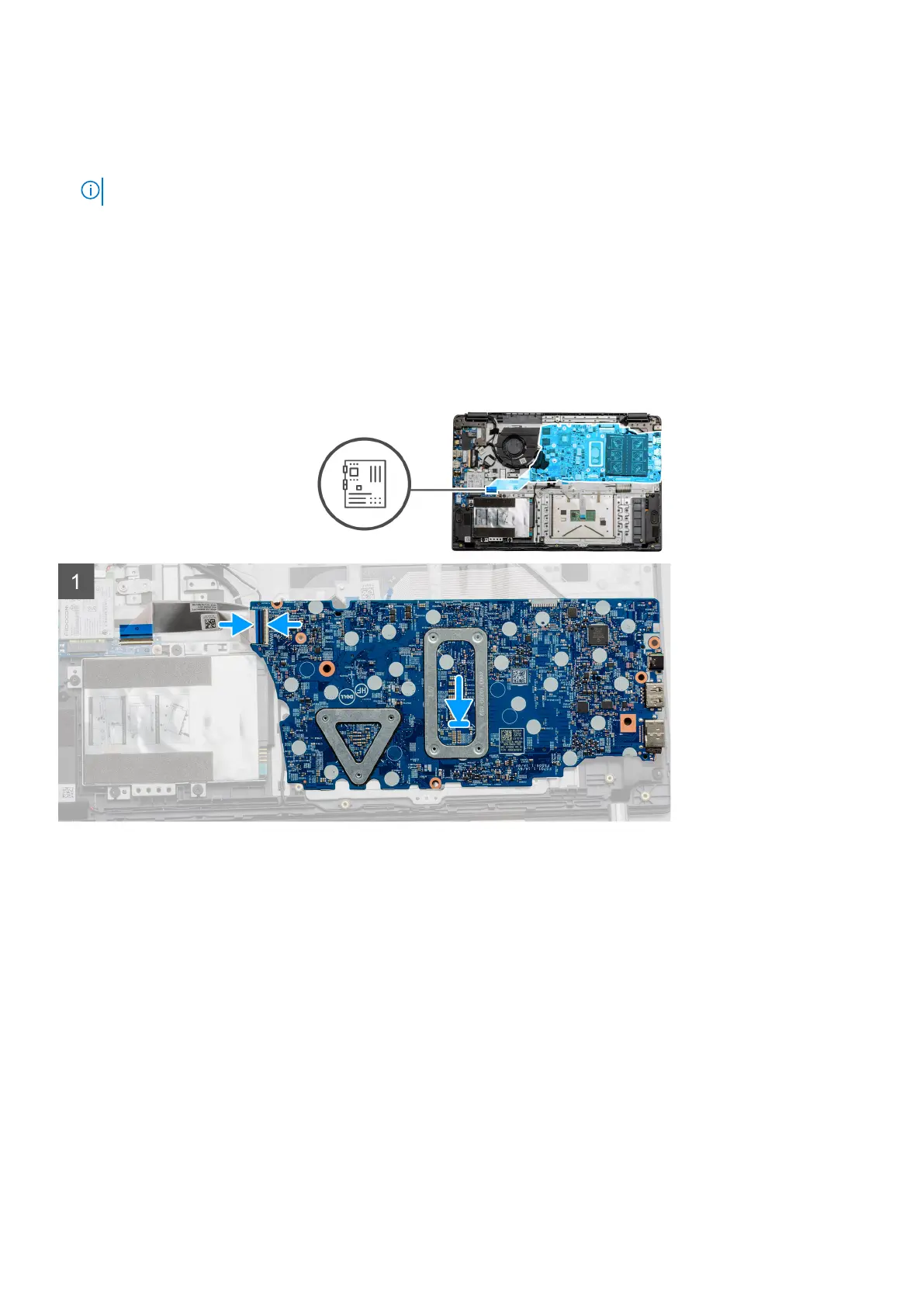

The figure indicates the location of the system board and provides a visual representation of the installation procedure.
52 Disassembly and reassembly
