WWAN card
Removing the WWAN card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card
3. Remove the base cover.
4. Remove the battery.
About this task

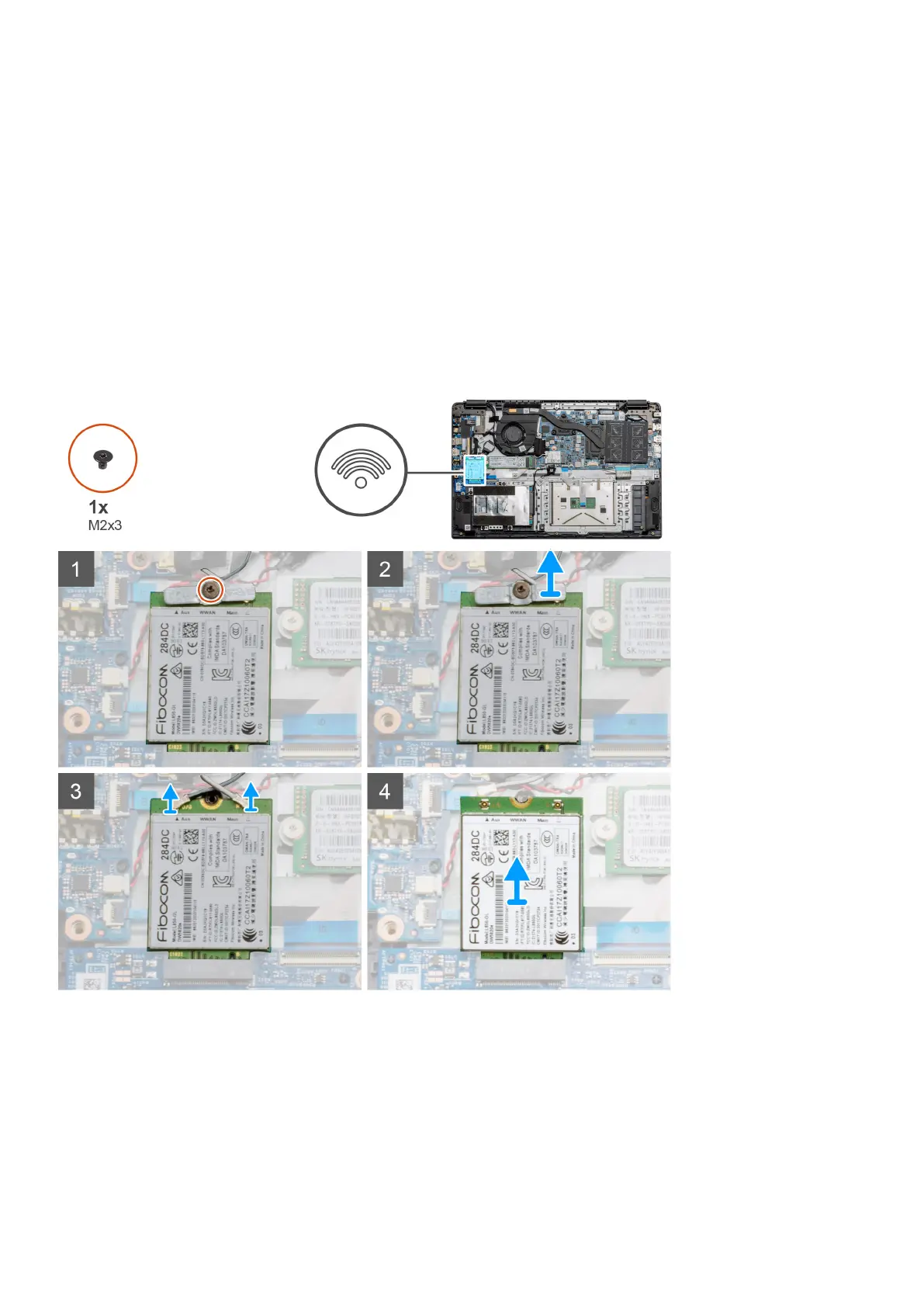

The figure indicates the location of the WLAN card and provides a visual representation of the removal procedure.
Steps
1. Remove the single (M2x3) screw that secures the WWLAN bracket to the computer.
2. Remove the WWAN bracket.
3. Disconnect the WWAN antenna cables from the WWAN module.
4. Slide and remove the WWAN card from the WWAN card slot.
28
Disassembly and reassembly
