Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD Card.
3. Remove the base cover.
4. Remove the battery.
About this task

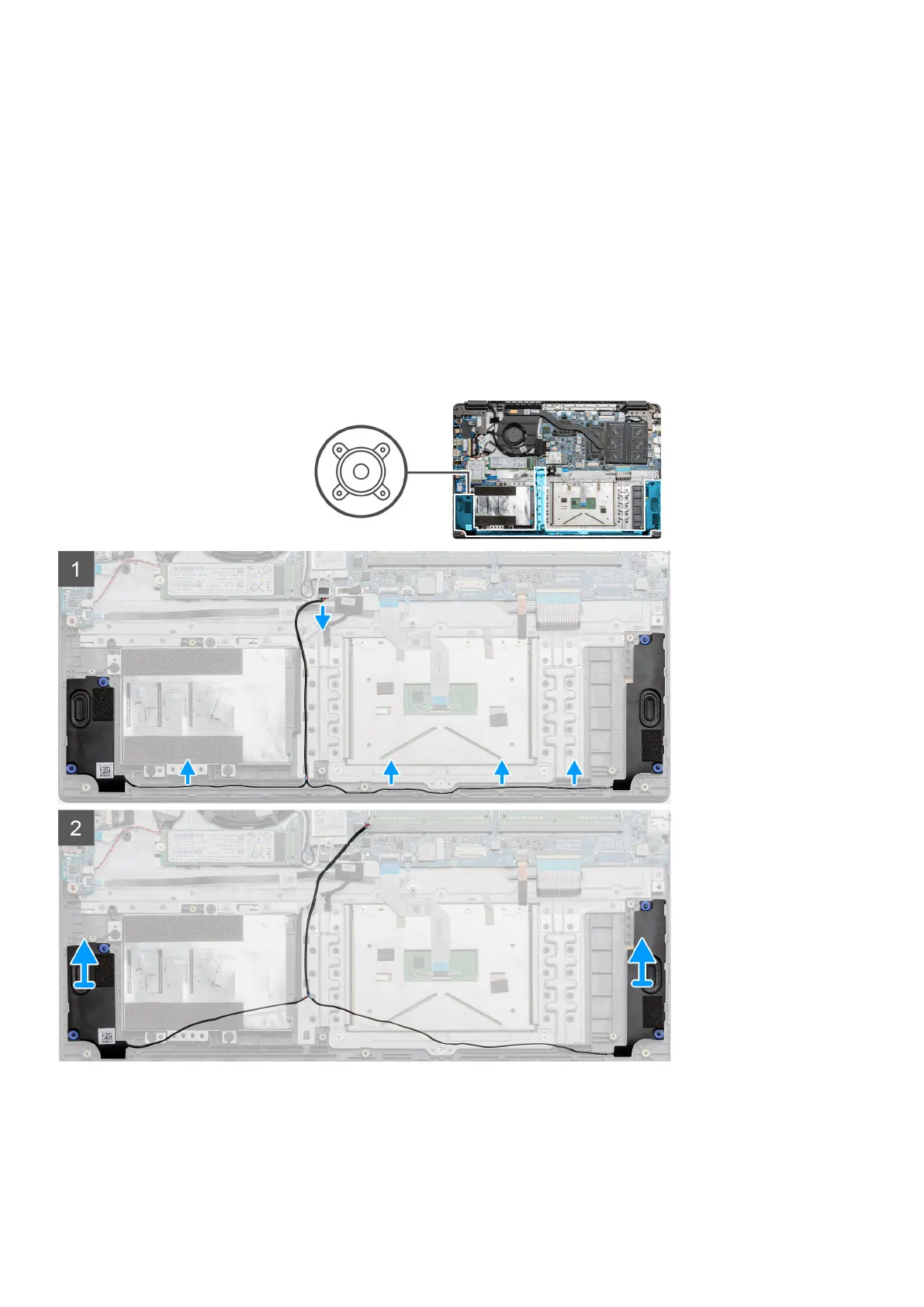

The figure indicates the location of the speakers and provides a visual representation of the removal procedure.
Steps
1. Disconnect the Speaker cable from the connector on the system board and lift the connected cables from the routing points
on the lower portion of the palmrest.
2. Ensure the cables are free and lift the speaker modules from both ends of the computer.
42
Disassembly and reassembly
