Steps

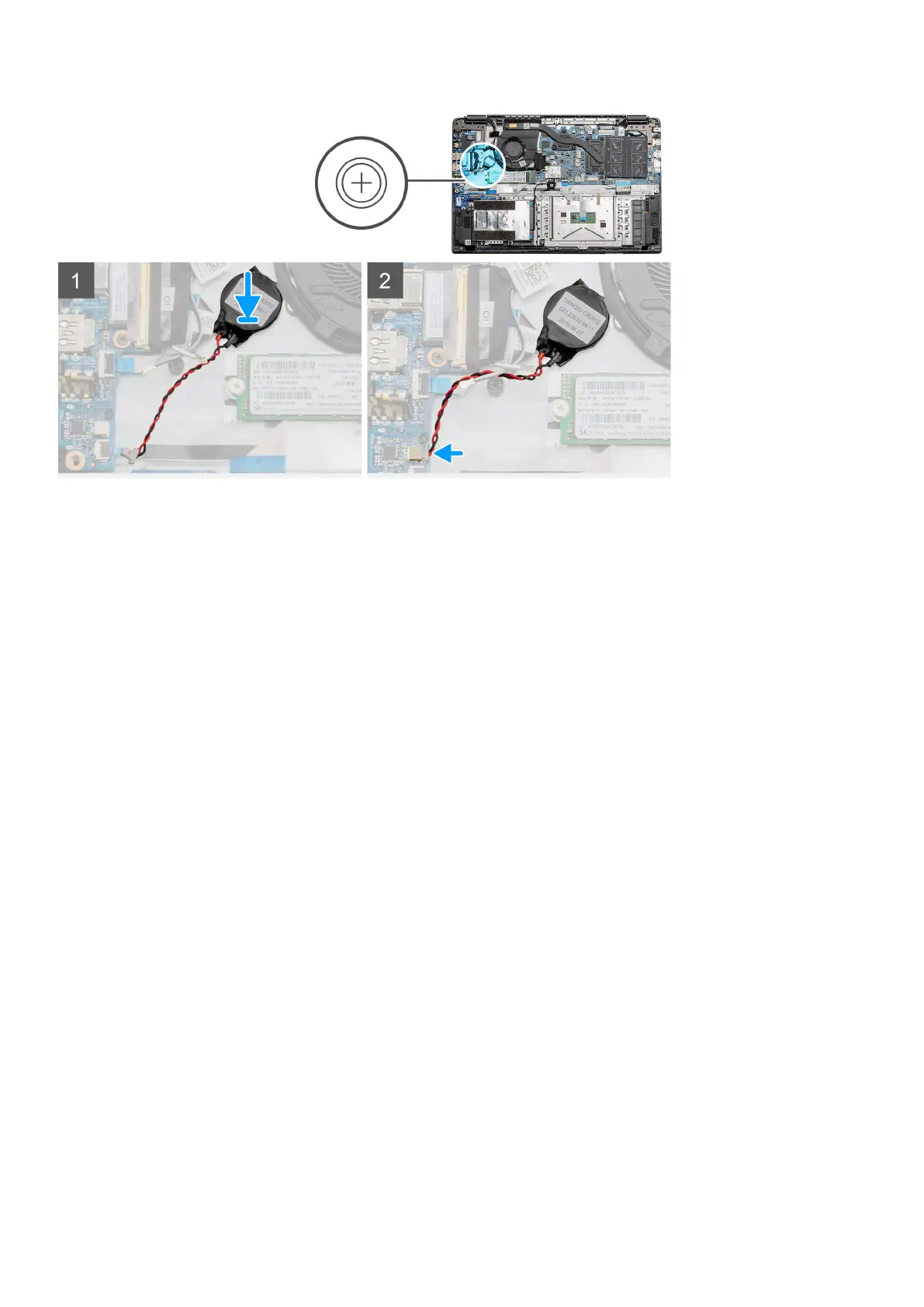

1. Re-adhere the coin-cell battery to the slot on the palmrest assembly.
2. Connect the coin-cell battery cable to the system board.
Next steps
1. Reconnect the battery cable.
2. Install the base cover.
3. Install the SD card
4. Follow the procedure in After working inside your computer.
DC-in port
Removing the DC-in
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Disconnect the battery cable.
About this task
The figure indicates the location of the DC-in and provides a visual representation of the removal procedure.
