3. Disconnect the WLAN antenna cables, and remove the cables from the cable management routes along side the fan
assembly.
4. Disconnect the fan cable from the system board and lift the fan assembly away from the computer.
Installing the Fan Assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

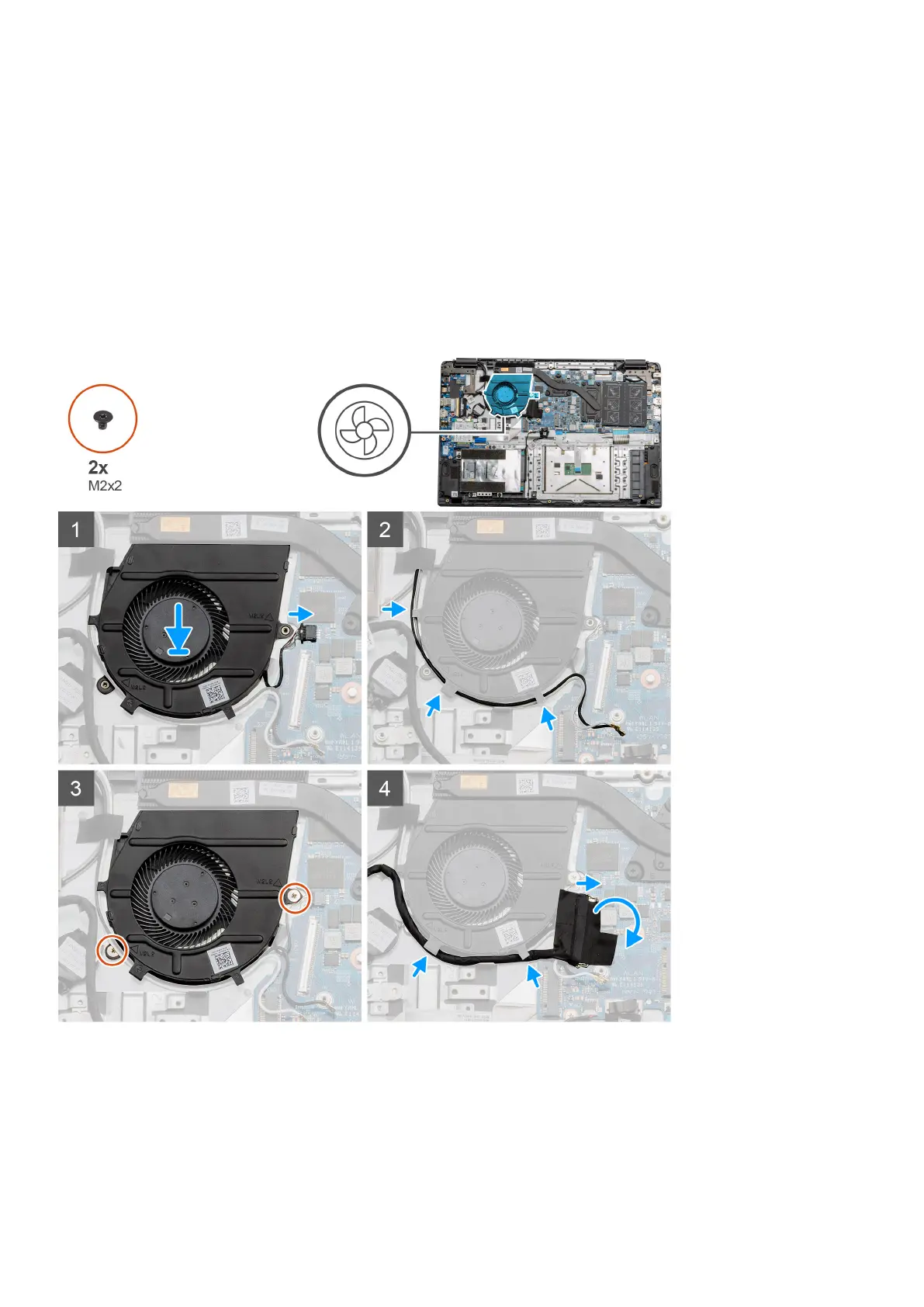

The figure indicates the location of the fan assembly and provides a visual representation of the installation procedure.
Steps
1. Place the fan assembly onto the mounting points on the palmrest and connect the fan cable to the system board.
2. Route the antenna cables along the cable management routes on the fan assembly and connect the cables to the WLAN
card.
3. Connect the fan connector to the system board.
4. Route the IO board cable along the cable management route on the fan assembly and connect it to the system board.
Disassembly and reassembly
45
