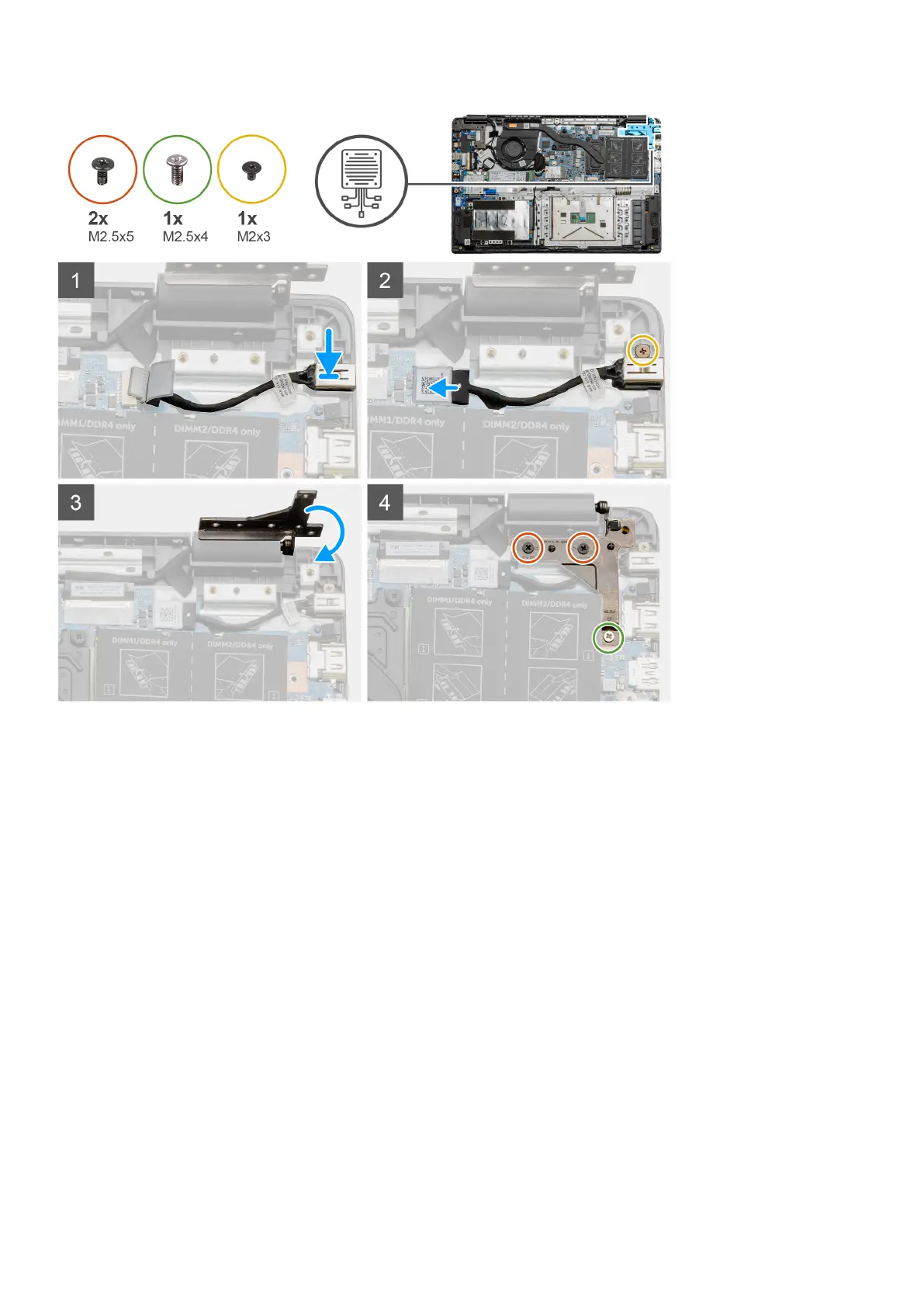

Steps
1. Place the DC-in module into the provided slot.
2. Install the (M2x3) screw and connect the DC-in cable to the system board.
3. Fold and align the hinge to the screw holders on the palmrest.
4. Install the two (M2.5x5) and one (M2.5x4) screws to secure the hinge.
Next steps
1. Reconnect the battery cable.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Disassembly and reassembly
33
