Steps

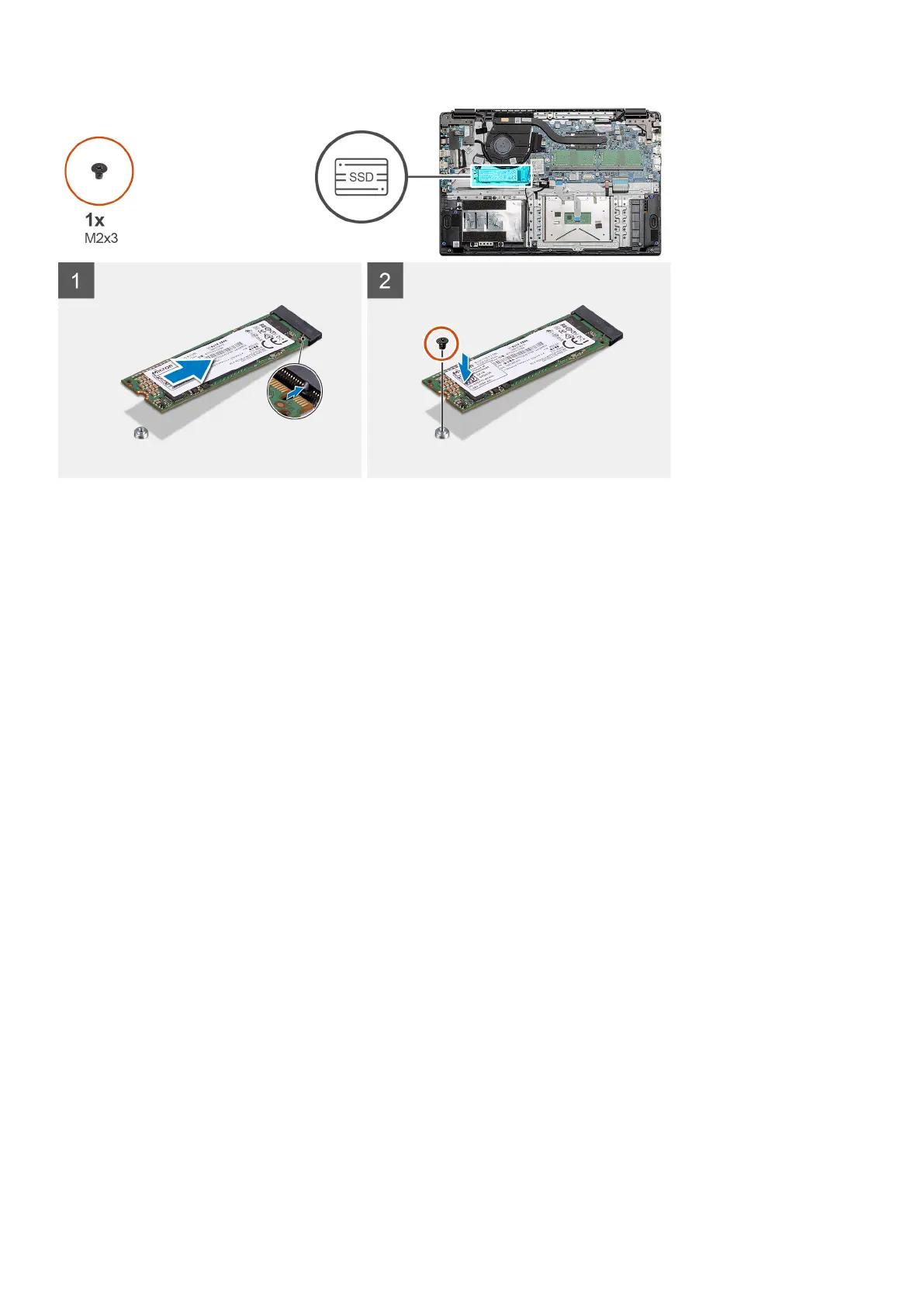

1. Align and slide the solid-state drive into the slot.
2. Replace the single (M2x3) screw to secure the solid-state drive module to the system.
Next steps
1. Install the battery cable.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Removing the M.2 2230 solid-state drive
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD Card.
3. Remove the base cover.
4. Disconnect the battery.
About this task
The figure indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the removal
procedure.
