Steps
1. Align and slide the solid-state drive into the slot.
2. Replace the single (M2x3) screw to secure the solid-state drive module to the palmrest and keyboard assembly.
Next steps
1. Install the battery cable.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in After working inside your computer.
Installing M.2 solid-state drive bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

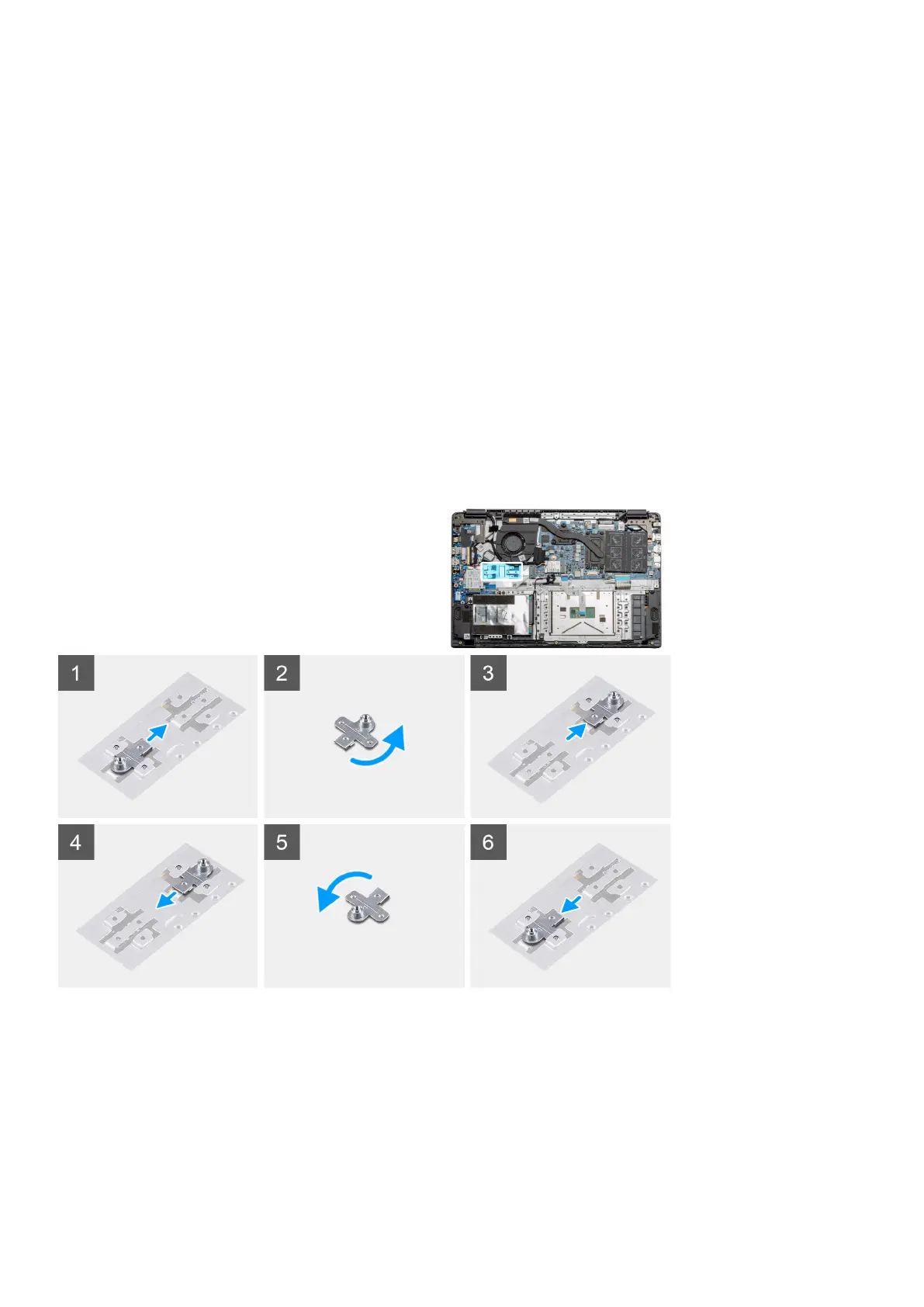

The figure indicates the location of the M.2 solid-state drive bracket and provides a visual representation of the installation
procedure.
Steps
1. Slide the bracket out of the metal holder.
2. Rotate the bracket so that it faces the opposite side from its original mounting position.
3. Slide the bracket into the metal holder on the opposite end.
Next steps
1. Install the battery cable.
2. Install the base cover.
Disassembly and reassembly
37
