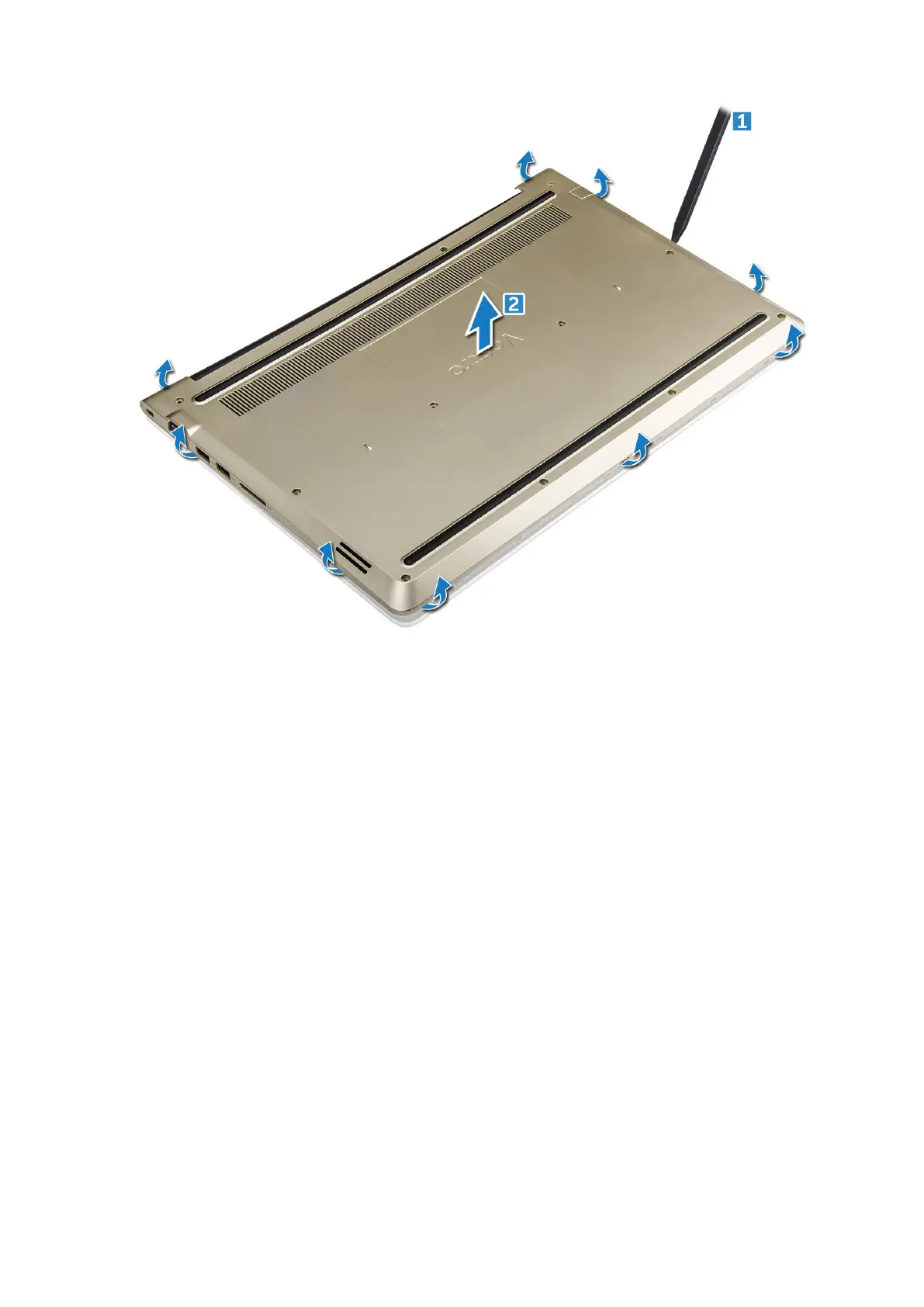

Figure 6. Prying at the edge to remove the back cover
Installing the back cover
1. Align the back cover with the screw holes on the computer.
2. Tighten the screws to secure the base cover to the computer.
3. Follow the procedure in After working inside your computer
Removing the battery module
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. To remove the battery:
a. Disconnect the battery cable from the connector on the system board [1].
b. Remove the screws that secure the battery to the computer [2].
c. Lift and remove the battery from the computer [3].
Removing and installing components
13
