c. WLAN card
d. LED board
e. system fan
f. display assembly
g. display bezel

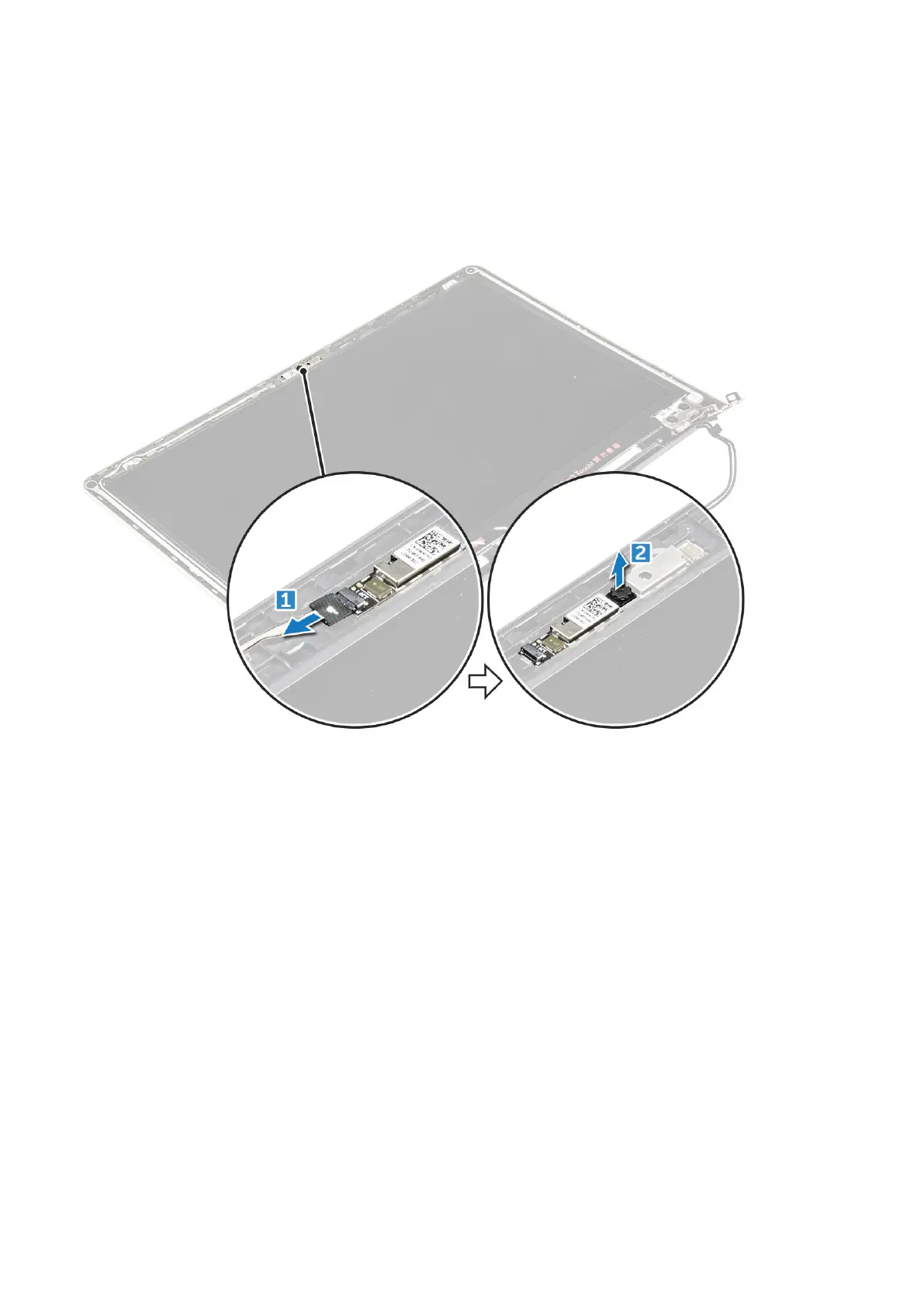

3. To remove the camera:
a. Disconnect the camera connector cable. [1]
b. Lift to remove the camera from the computer. [2]
Installing the camera
1. Align the camera to its slot on the display panel.
2. Connect the camera cable to its connector on the display panel.
3. Install the:
a. display bezel
b. display assembly
c. system fan
d. LED board
e. WLAN card
f. battery
g. back cover
4. Follow the procedure in After working inside your computer
Removing the display
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. back cover
Removing and installing components
39
